Chamber filter press with closed filtrate drain and sealed filter plates

details to article: 30351

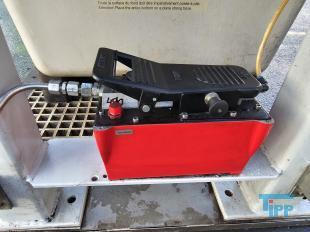

description: Chamberfilterpress 470x470mm with compressed air driven hyraulic

technical data
Plate dimension	470 mm
Volume	100 l
Filter surface	18 m²
Number of plates	28+1+1
Pate thickness	50 mm
Cake strength	25 mm
expiration of filtrate	geschlossen
Length	2840 mm (total)
Width	920 mm (total)
Height	1550 mm (total)
Weight	1500 kg (approx.)
Pressure	420 bar (max. closing pressure)
Pressure	15 bar ()
Steering	Christ Touch-IT Basic 5.7 TFT
Accessories	(DanFoss VLT frequency converter e.g. for controlling a feed pump)
