technical data |
| Power | 20 - 40 kg (nominal output kg / TS / h) |
| - | 2 m³/h (nominal output approx. (Hydraulic)) |

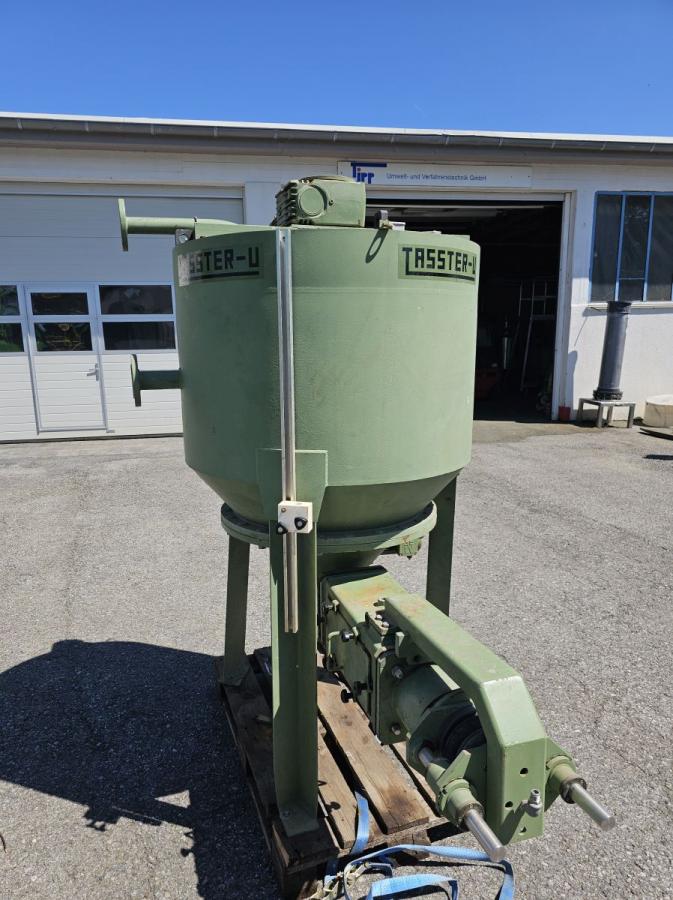

| Description | (Tasster dewatering unit: thickening of flocculated sludge / filtering of the pre-thickened sludge in the screw grid system / pressing of the sludge by a counterpressure device / trough conveyor screw with geared motor) |
| - | - (vertical agitator with motor reduction gear 0.15 kW) |
| - | - (extraction device with horizontally mounted extruder screw with gearbox and drive unit 0.7 kW) |
| Length | 1900 mm |
| Width | 1200 mm |
| Height | 2000 mm |
| Weight | 500 kg (approx) |
| Connections | DN 40 / DN 50 (Connection pipe / overflow channel for clear water with drain pipe) |
| - | |
