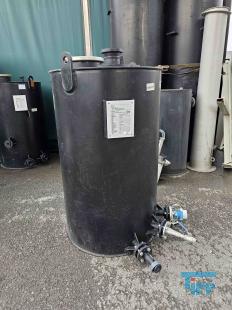

used plastic round tank / treatment tank / storage tank / water tank
details to article: 30163
description: The tank is made of PE-100-RC. All documents, drawings and data are available.
| Producer: | Weber Kunststofftechnik |
| Year of manufacture: | 2019 |
| Pieces: | 1 |
technical data |
| Volume | 0.9 m³ | | Tank bottom | flach | | Material | PE (PE-100-RC) | | Height | 1500 mm (tank) | | Height | 1642 mm (total with connections) | | Diameter | 920 mm (tank) | | Width | 1040 mm (total) | | Connections | 1 x DN 32 ; 2 x DN 50 (aside) | | Connections | 1 x DN 40 ; 1 x DN 100 (on top) | | Miscellaneous | (1 x mounting hole DN 300) | | Accessories | (DN 25 / PN 63 gate valve ; E and H Deltapilot M pressure transmitter) | | Weight | 70 kg (Container own weight) |
|
|
