used plate heat exchanger / heat exchanger

details to article: 30093

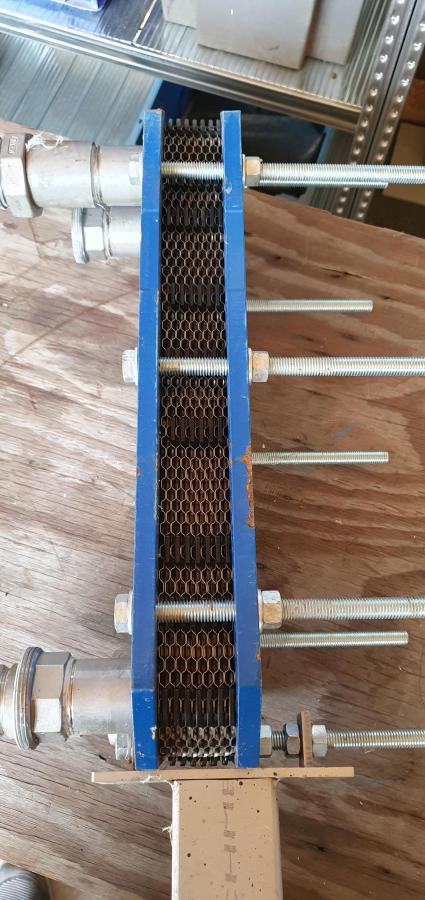

description: Plate heat exchanger with steel clamping device

technical data
Serial number	SD36247
Number of plates	14
Power	27 kW (Rated power)
Material	Edelstahl (Clamping device made of stainless steel)
Temperature	- 10 °C (min. operating temperature)
Temperature	180 °C (max.operating temperature)
Content	1 l
Pressure	10 bar (max. operating pressure)
Connections	4 x 1 1/4 Zoll x 150 mm (flange)
Width	200 mm
Depth	240 mm
Height	600 mm (with rack)
Weight	25 kg
Further information	0,50 m² (Transmission area)
