used chemical dosing station / Dosing station / Dosing cabinet / Dosing system

details to article: 30069

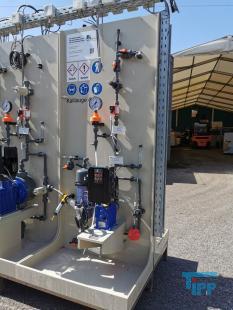

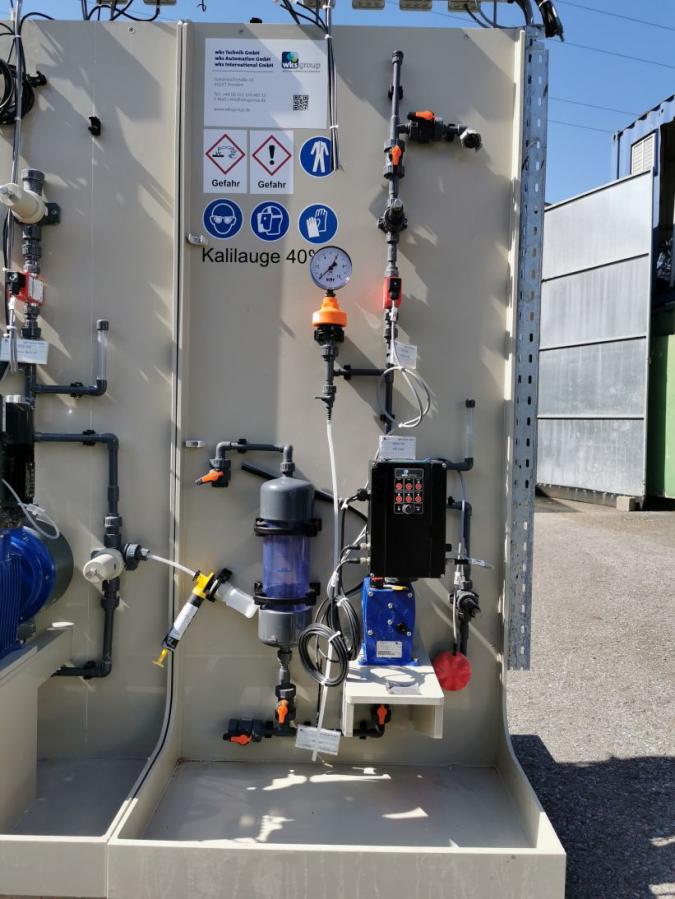

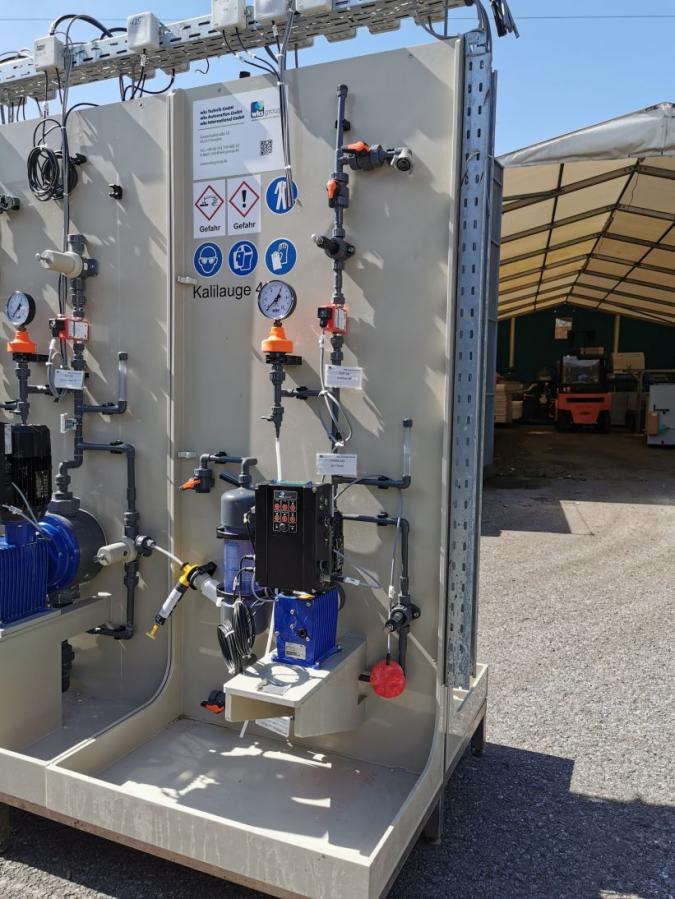

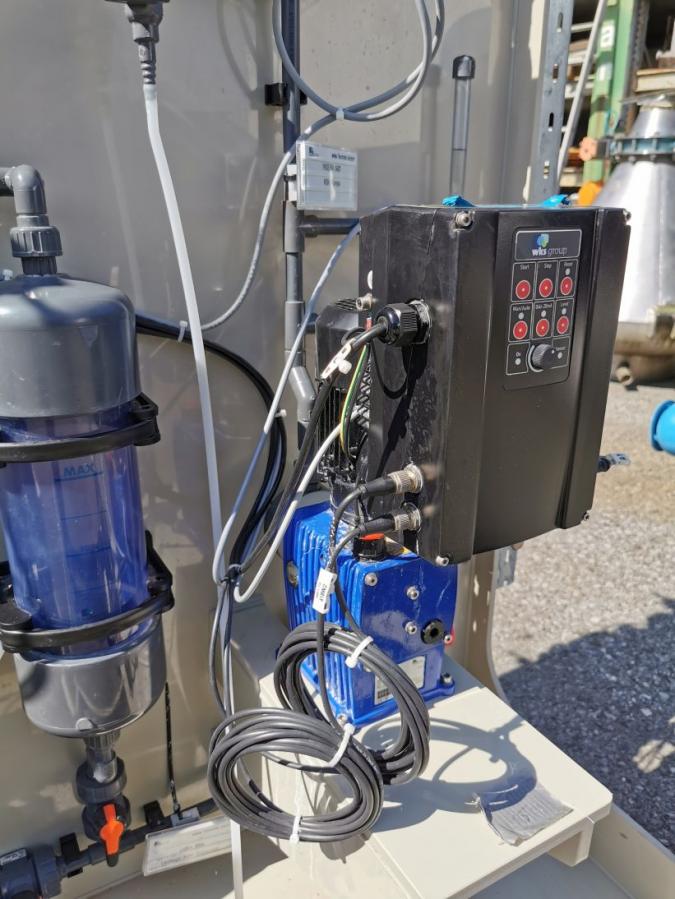

description: The dosing station consists of 1 pump with collecting tray (height 90 mm).
Pump data was taken from the documentation.

technical data
-	Station 1 -
-	- - (Previous use: Dosing of KOH)

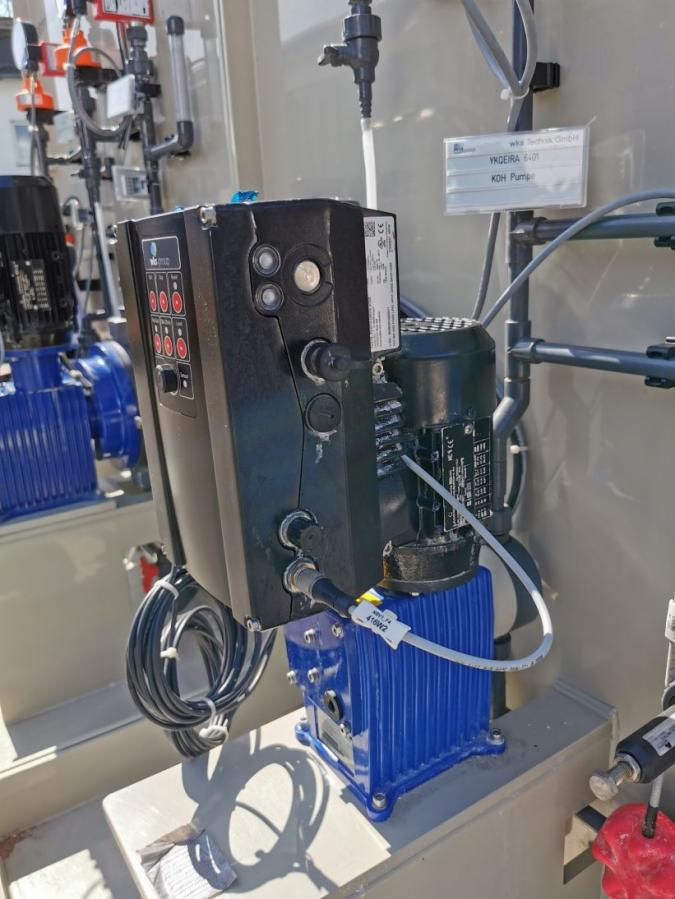

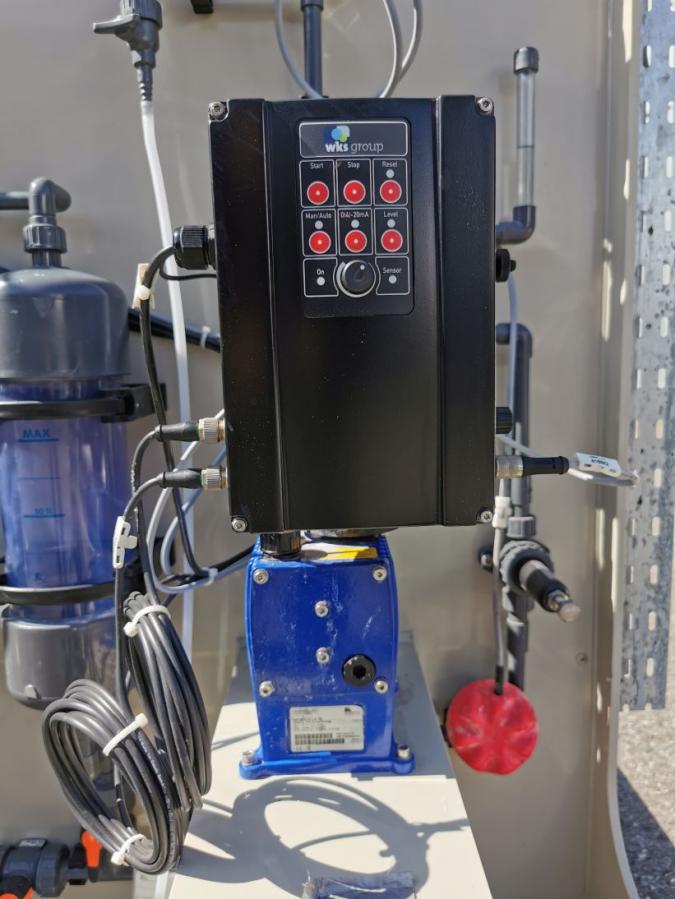

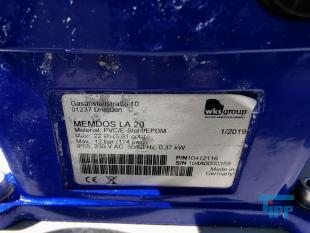

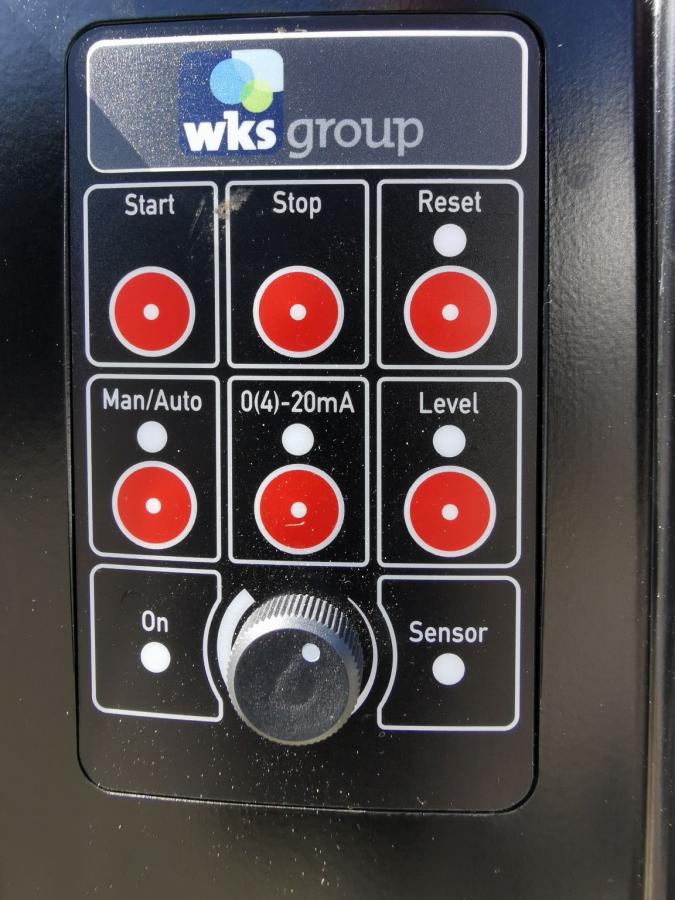

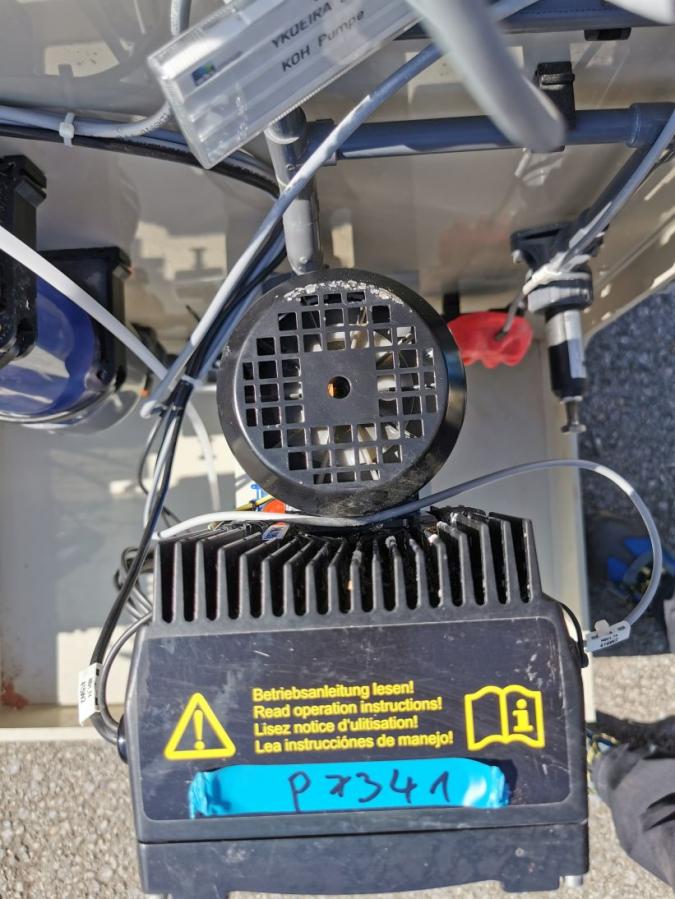

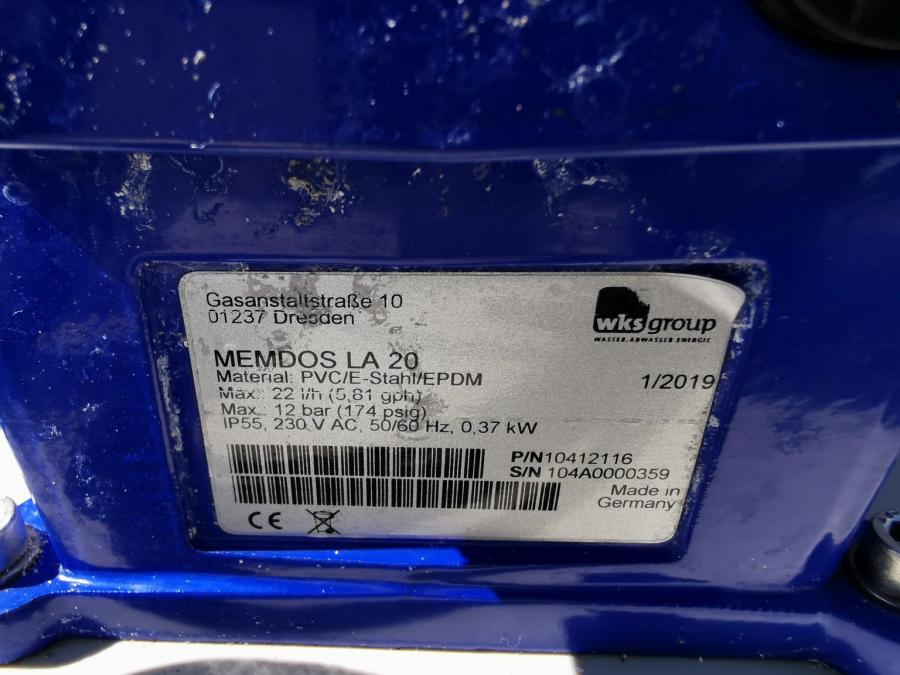

-	- - (Pump: wks MEMDOS LA 20)
Delivery rate	22 l/h (max.)
Voltage	230 V
Amperage	0,55 A
Power	0,37 kW

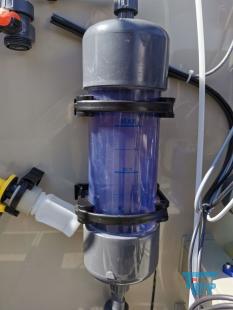

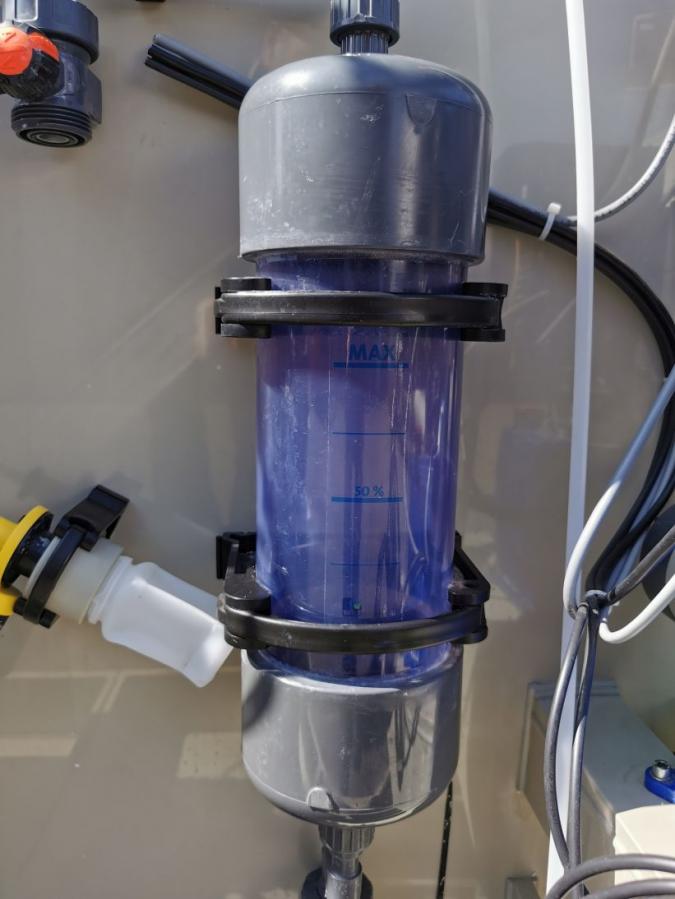

Miscellaneous	- - (Auxiliary suction pulsation damper W-AH (manual) with manual vacuum pump)

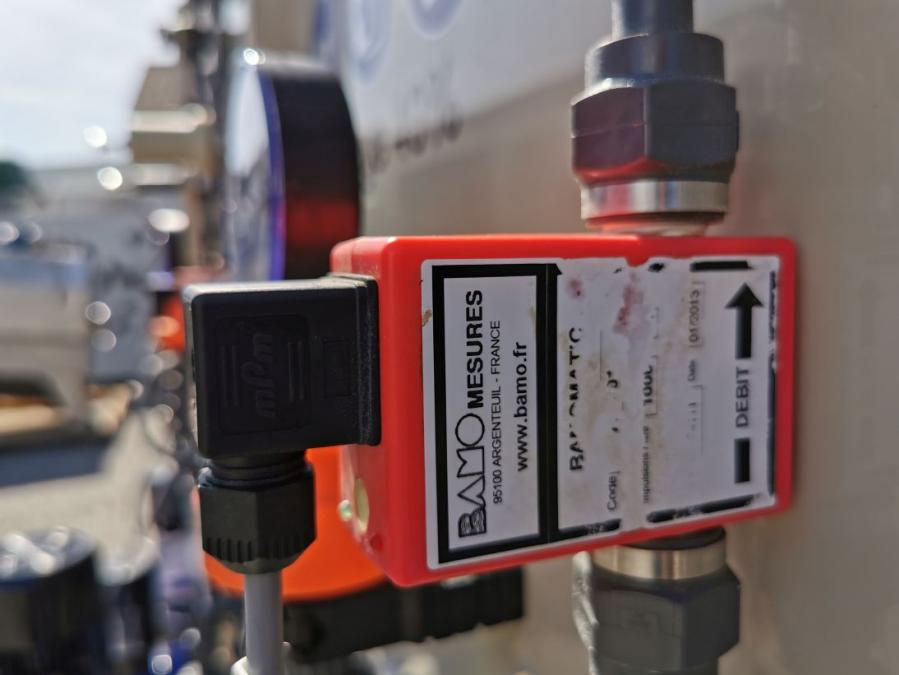

-	- - (Elektromagnetisches Durchflussmessgerät BAMO BAMOMATIC)

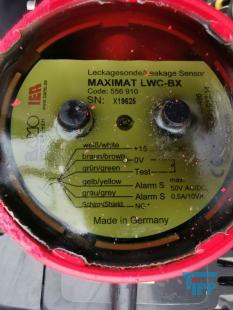

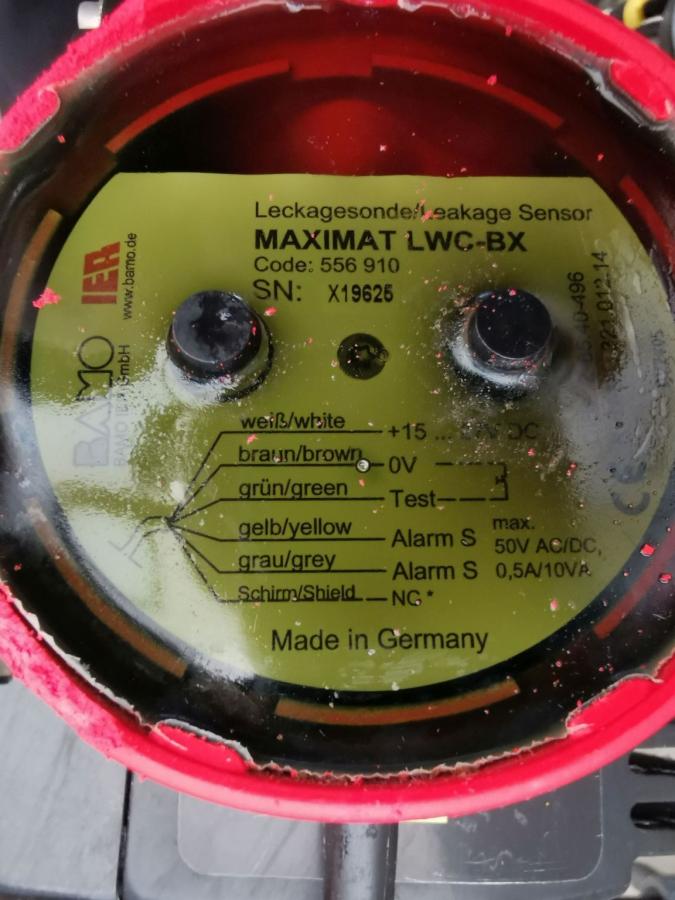

-	- - (Leakage measurement BAMO Maximat LWC BX)

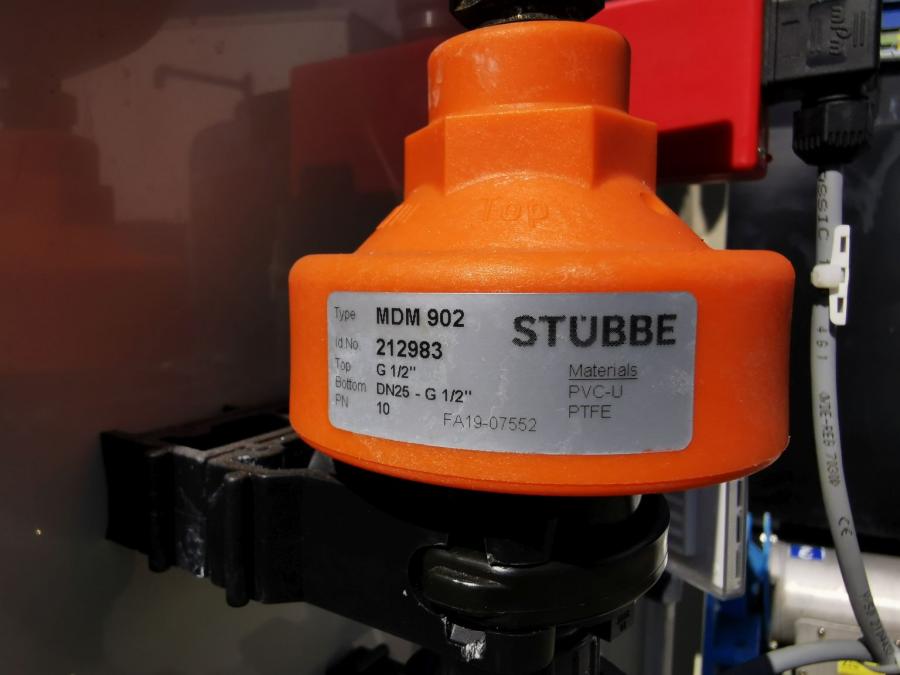

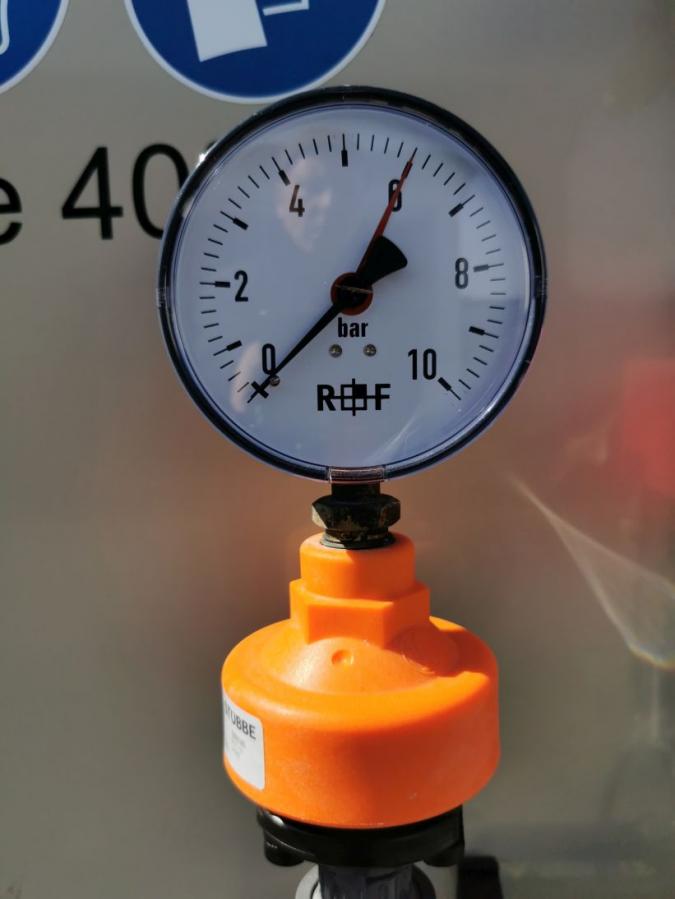

-	- - (Pressure gauge Wika 111 with diaphragm seal Stübbe MDM 902)
-	- - (Pressure maintenance and overflow valve wks)
-	- - (Ball valves Stübbe div.)
Dimensions	- mm (Height: 1800,Width: 800, Depth: 520 (without frame))
