used chemical dosing station / Dosing station / Dosing cabinet / Dosing system

details to article: 30067

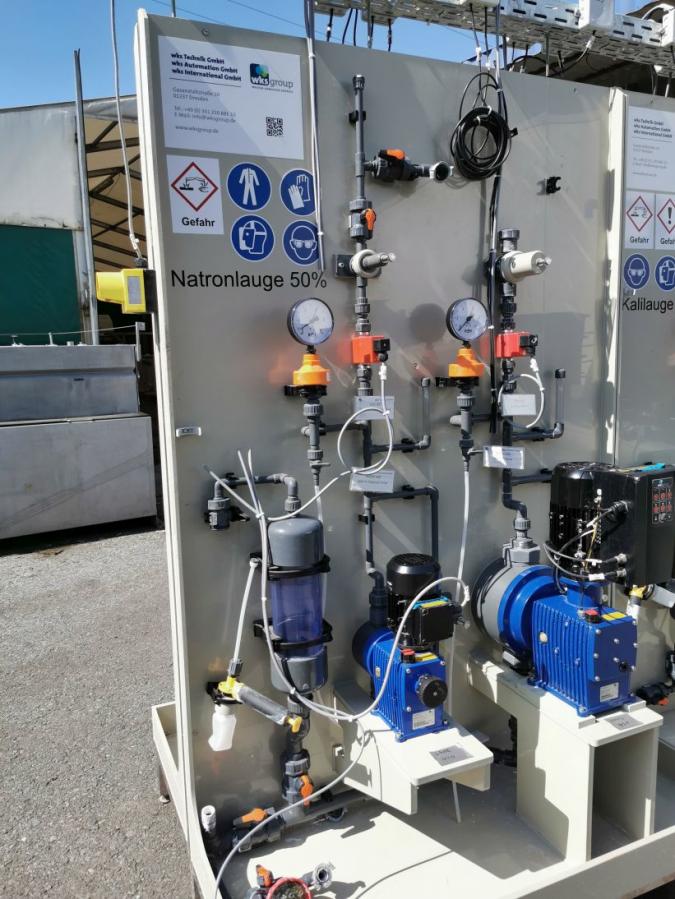

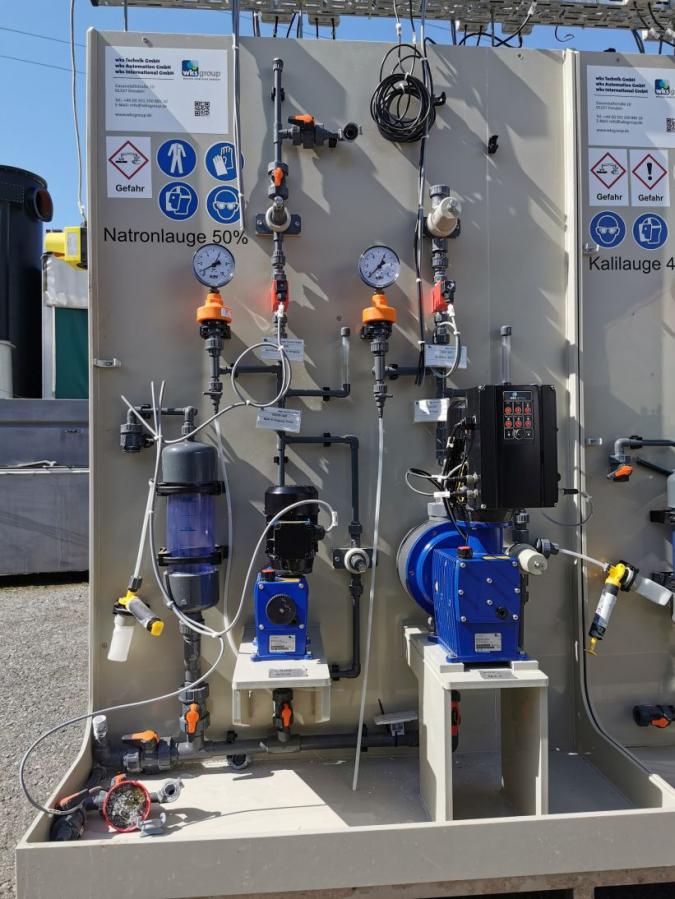

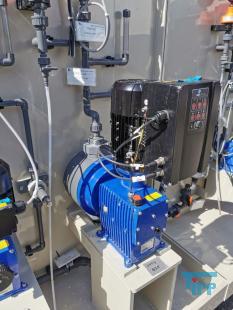

description: The dosing station consists of 2 pumps with a collecting tray (height 90 mm).
Pump data was taken from the documentation.

technical data
-	- - (Previous use: Dosing of NaOH)

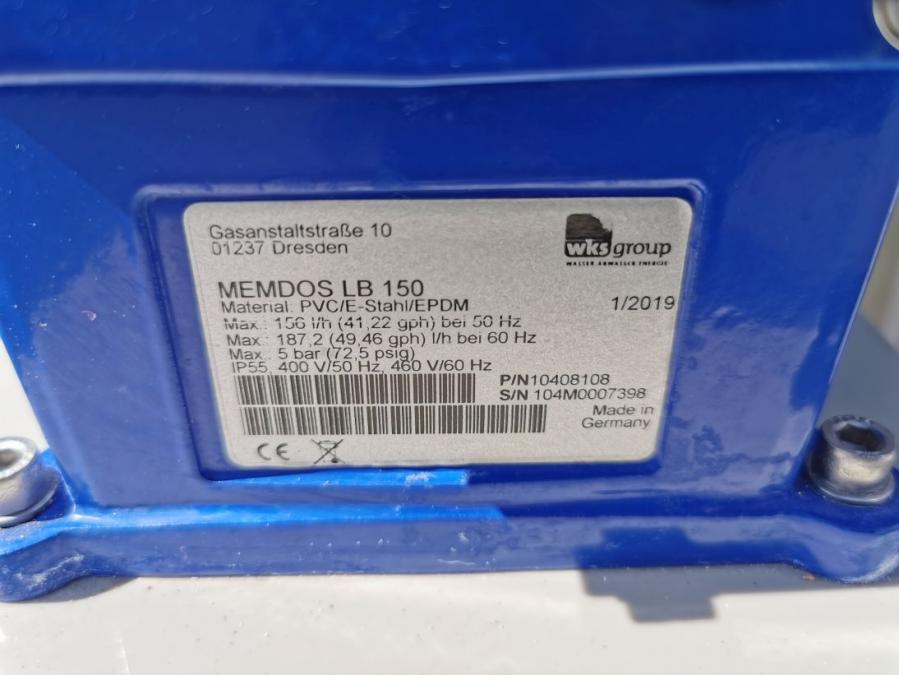

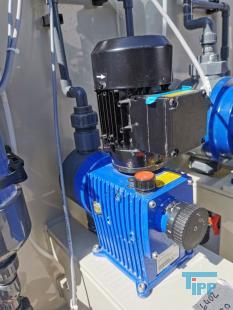

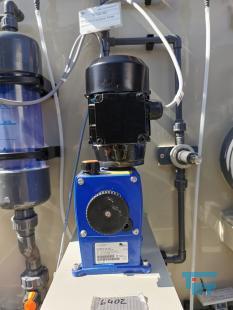

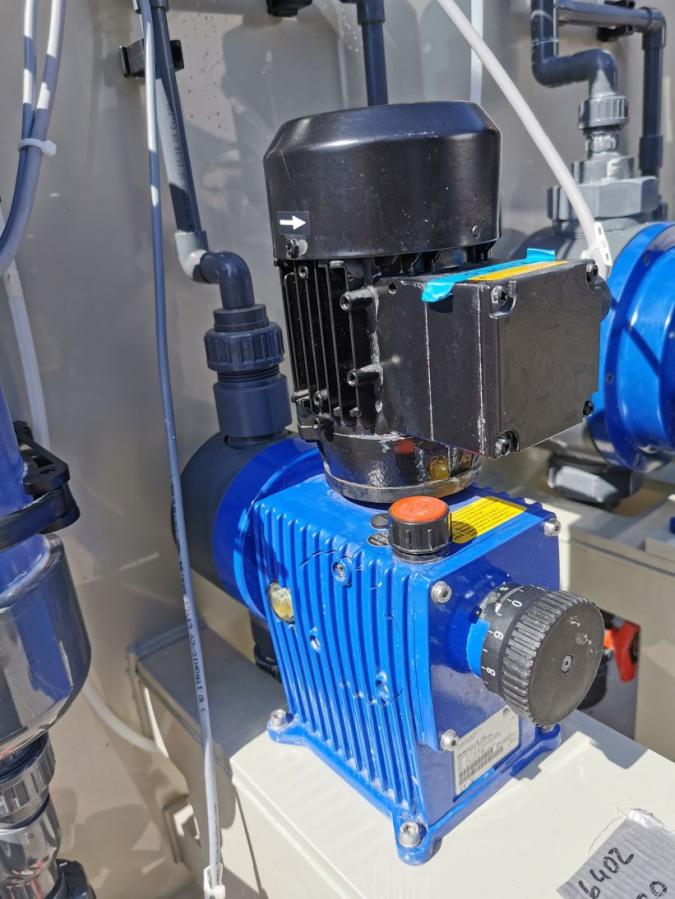

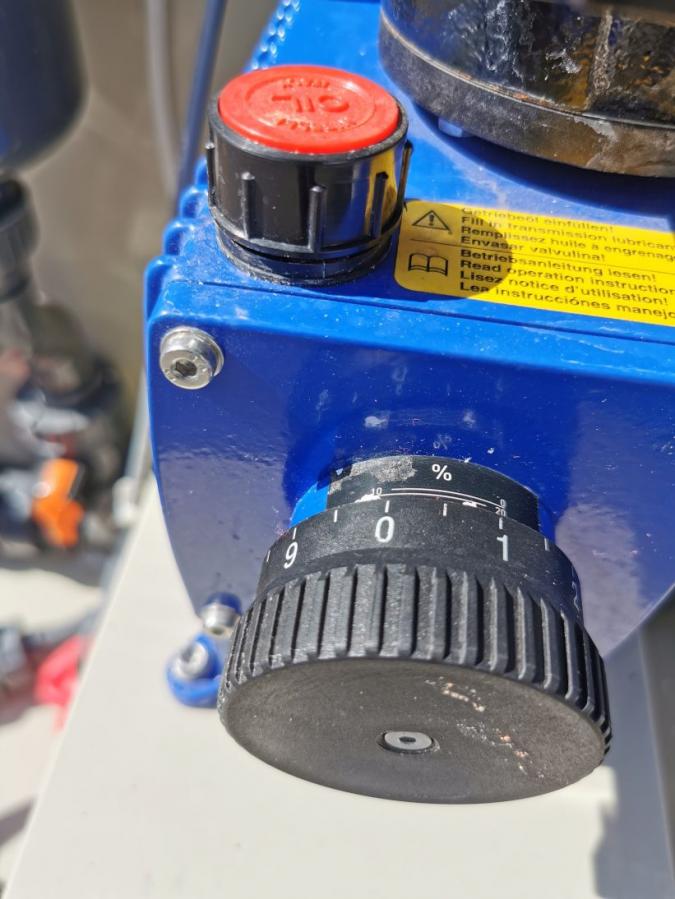

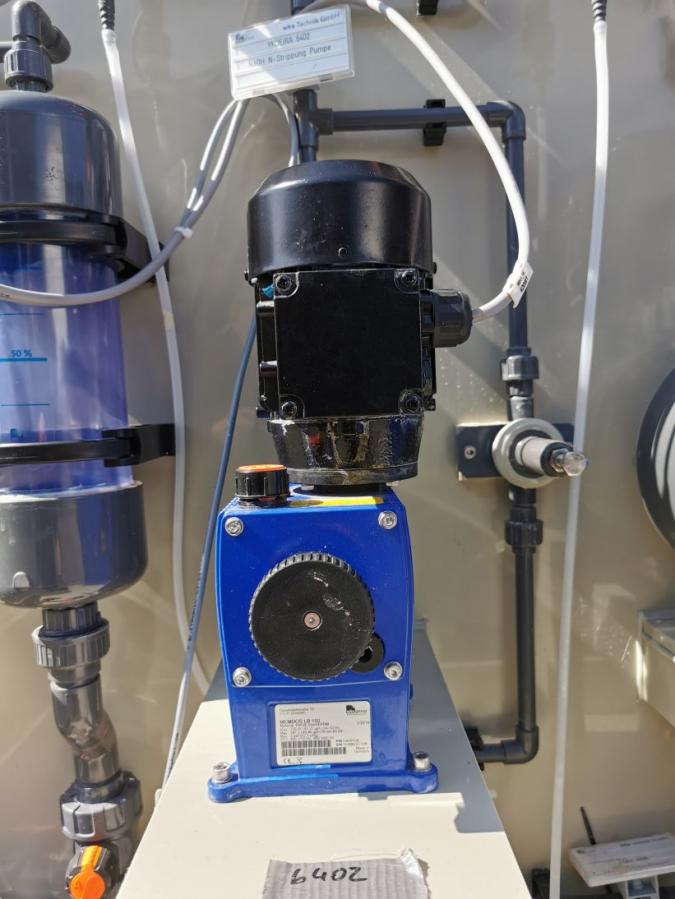

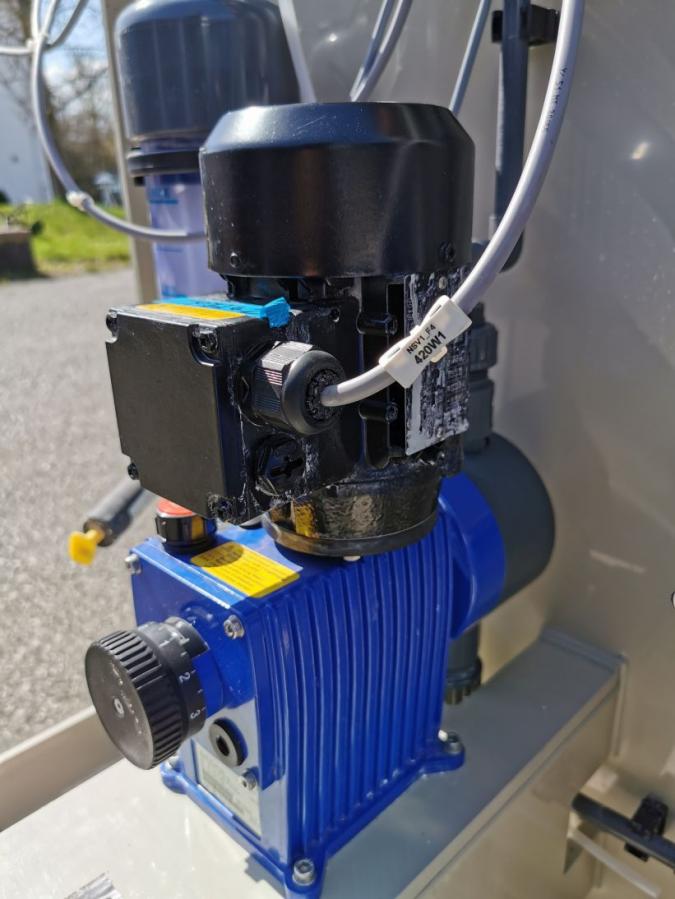

-	- - (Pump: wks MEMDOS LB 150)
Delivery rate	156 l/h (max.)
Voltage	230 V
Amperage	0,55 A
Power	0,12 kW

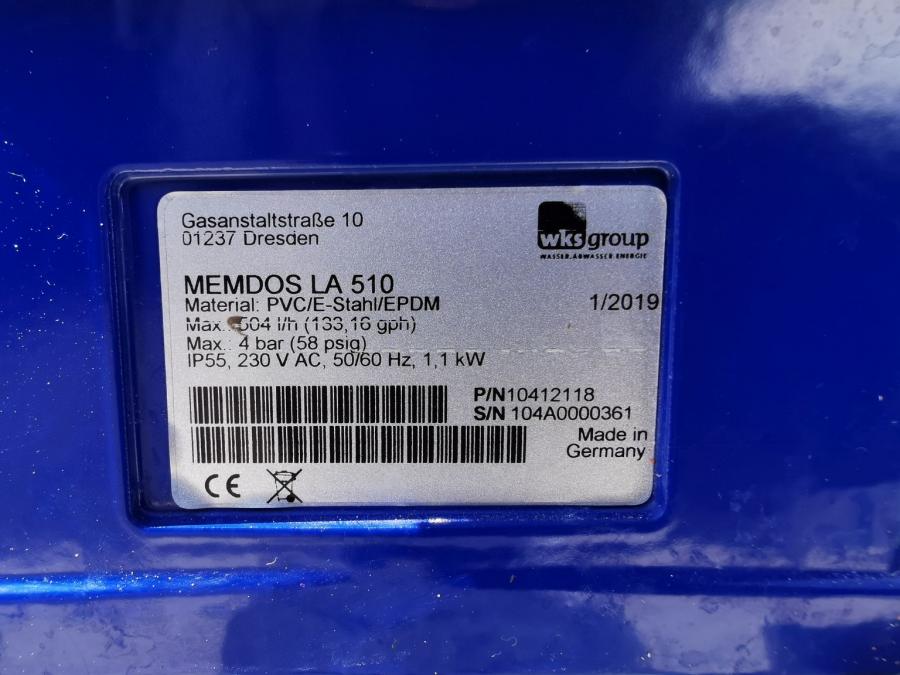

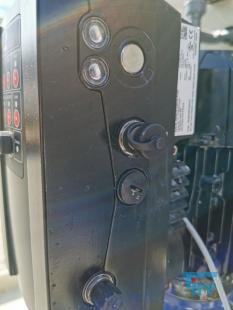

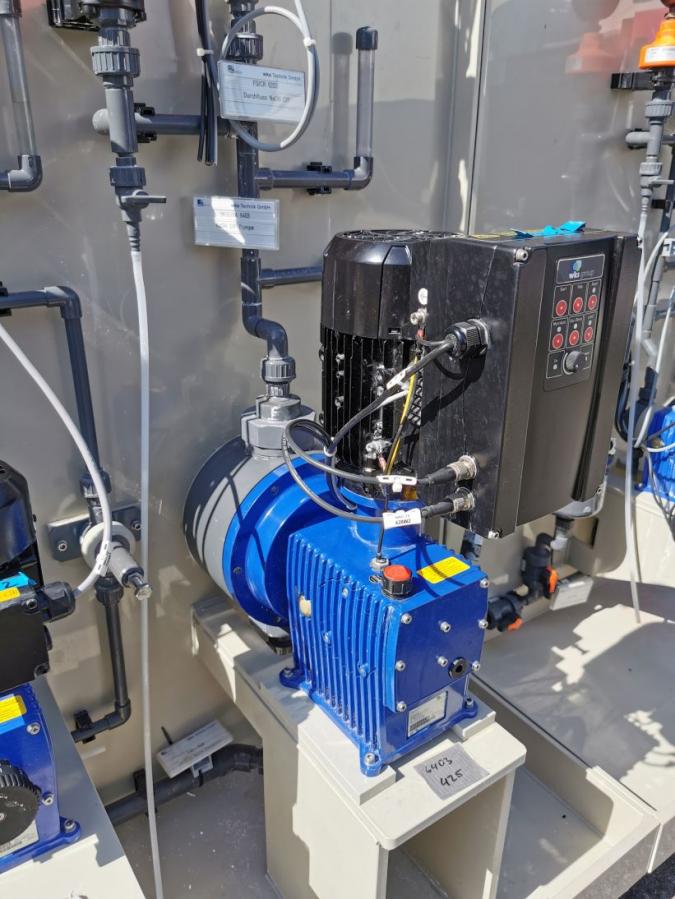

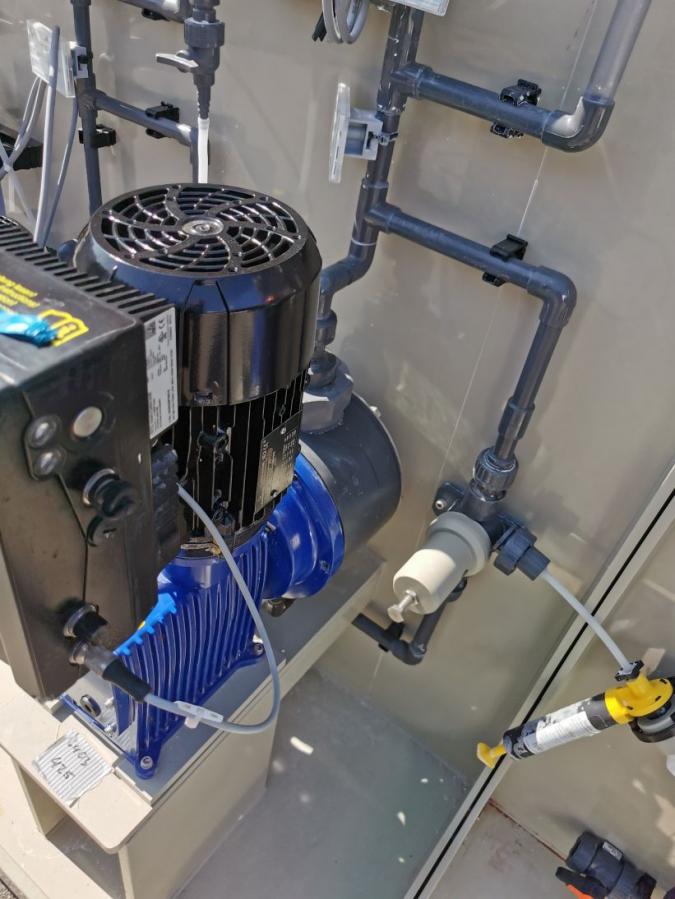

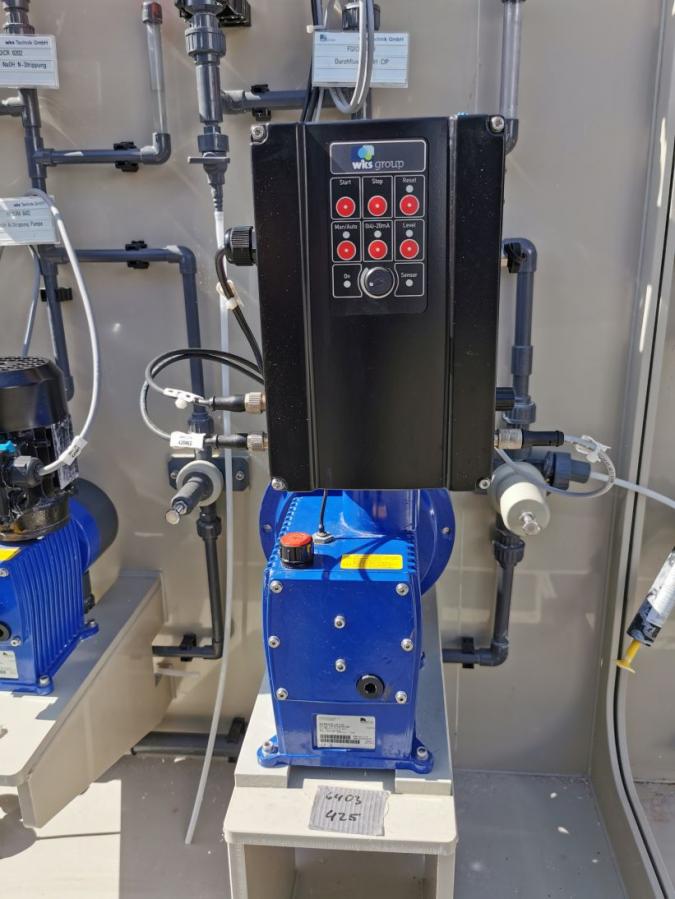

-	- - (Pump: wks MEMDOS LA 510)
Delivery rate	504 l/h (max.)
Voltage	230 V
Amperage	0,48 A
Power	1,1 kW

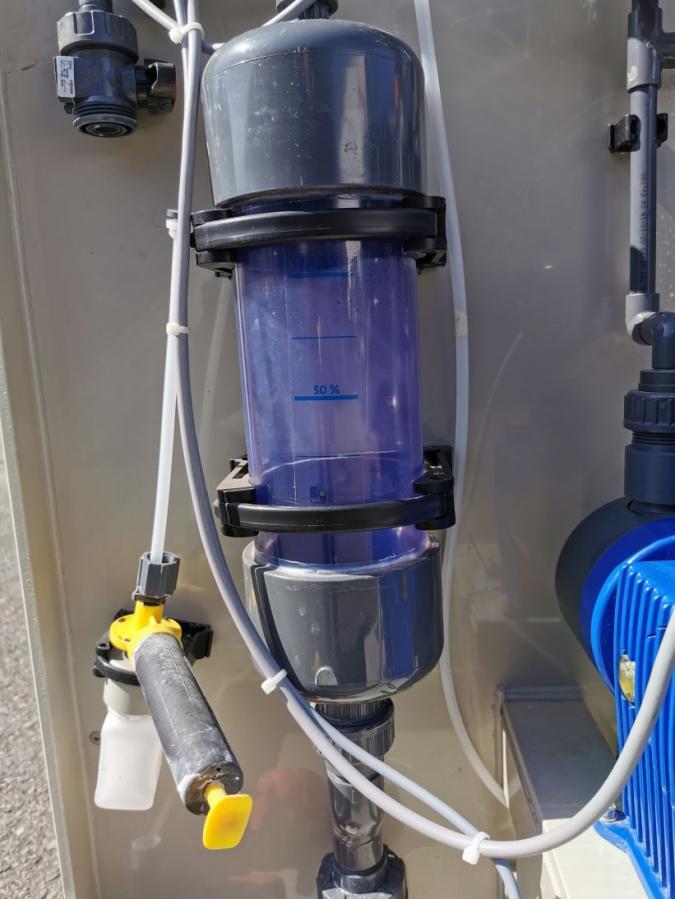

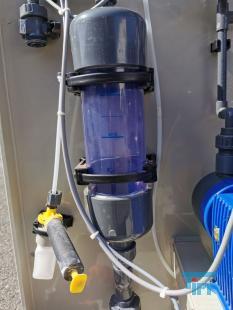

-	- - (Suction aid suction pulsation damper W-AH (manual) with manual vacuum pump)

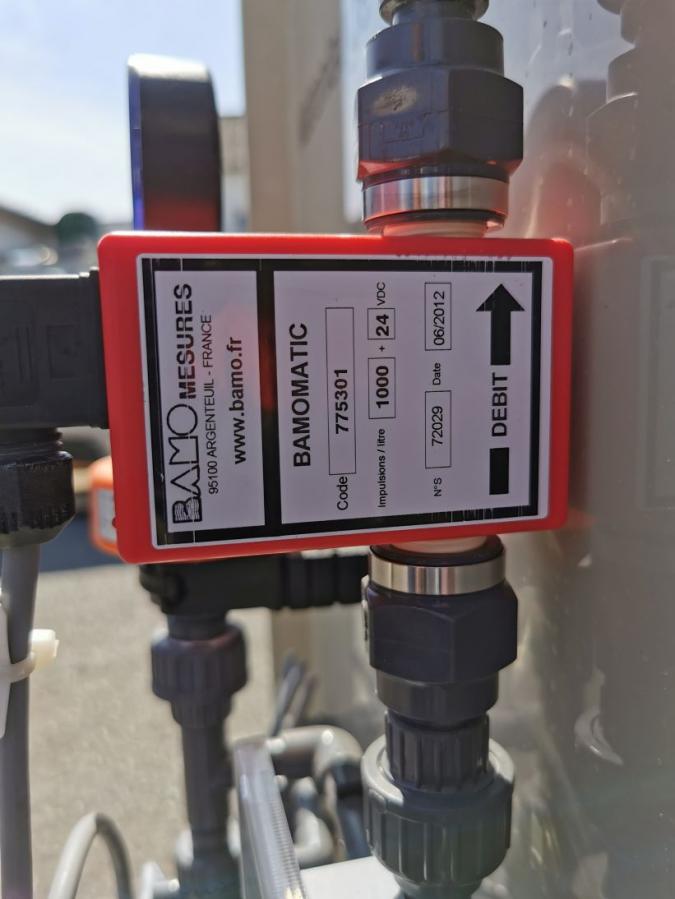

-	- - (2 x Electromagnetic flow meter BAMO BAMOMATIC)

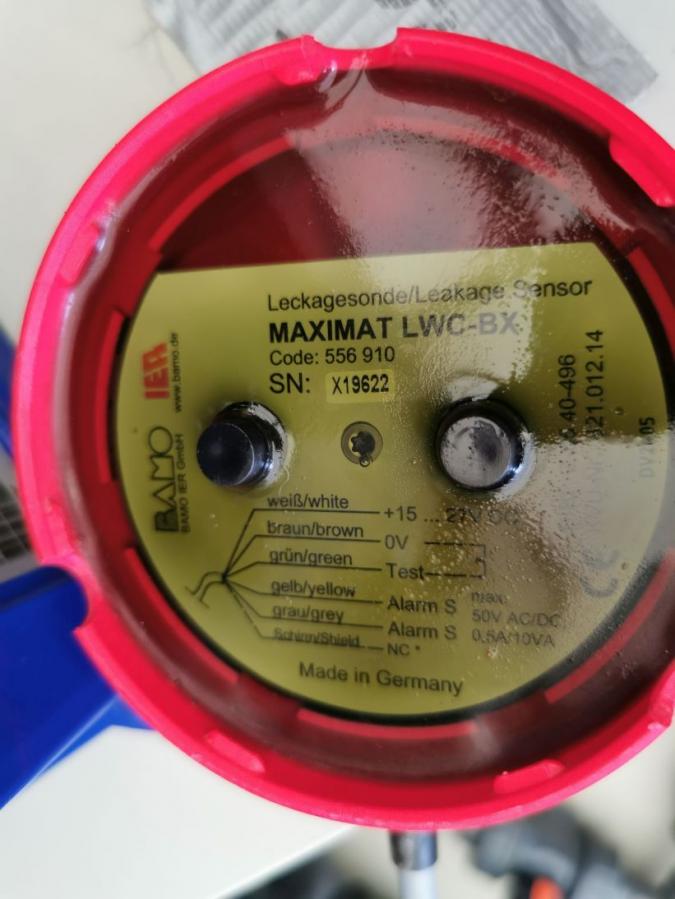

-	- - (Leakage measurement BAMO Maximat LWC BX)

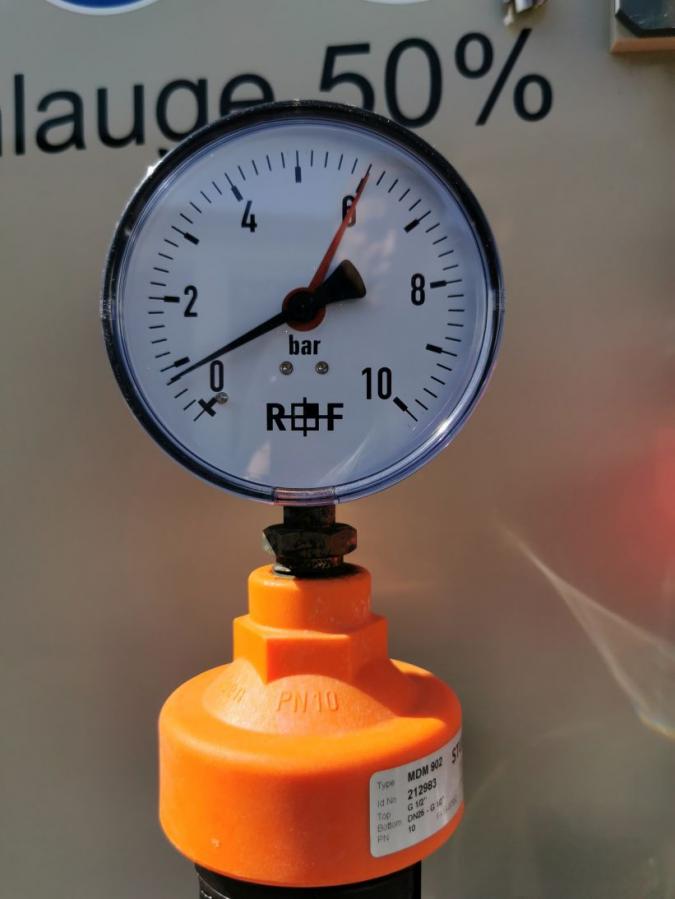

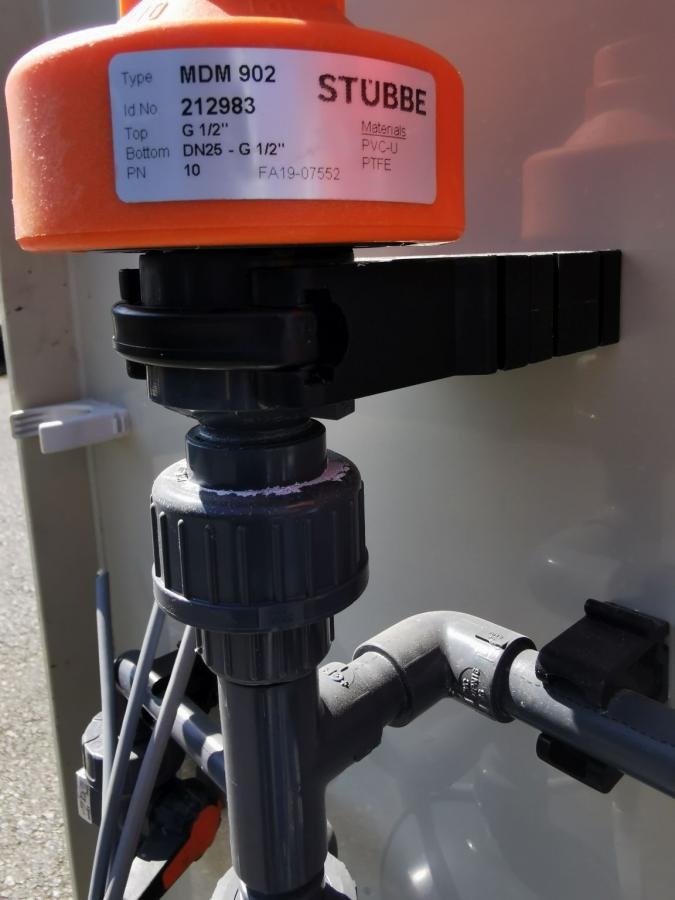

-	- - (2 x Pressure gauge Wika 111 with diaphragm seal Stübbe MDM 902)
-	- - (Pressure maintenance and overflow valves wks)
-	- - (Ball valves Stübbe div.)
Dimensions	- mm (Height: 1800, Width: 1200, Depth: 520 (without frame))
