used chemical dosing station / Dosing station / Dosing cabinet / Dosing system

details to article: 30061

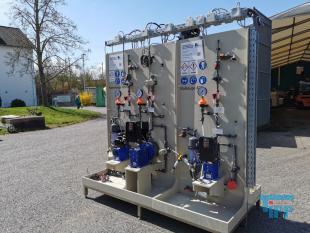

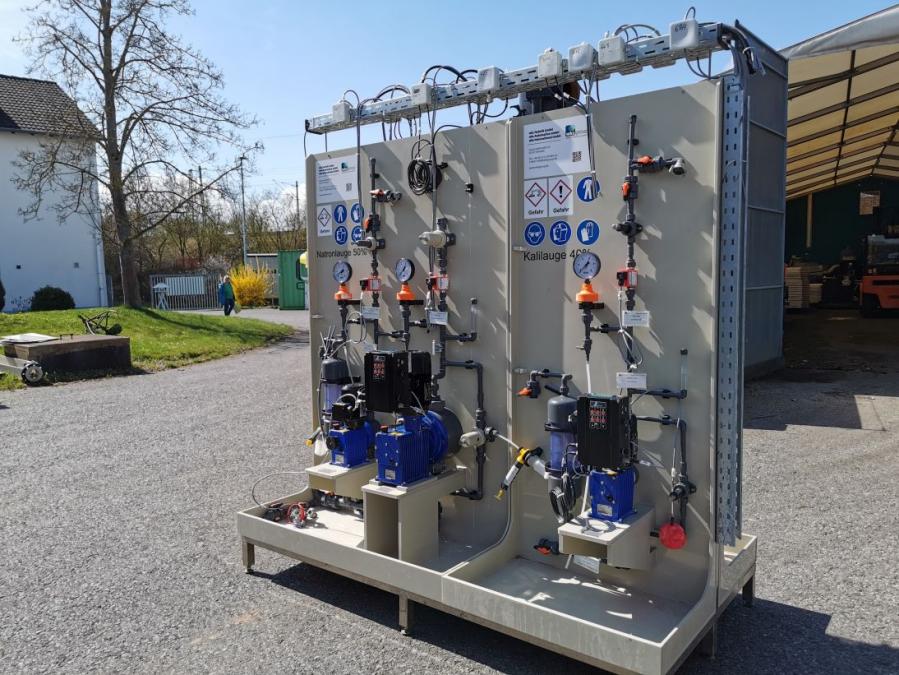

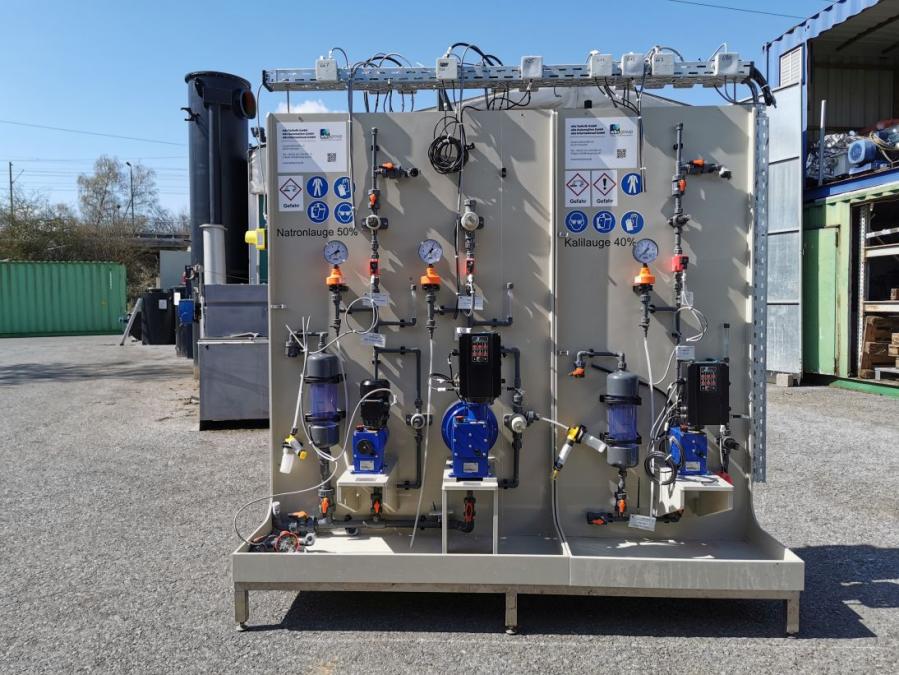

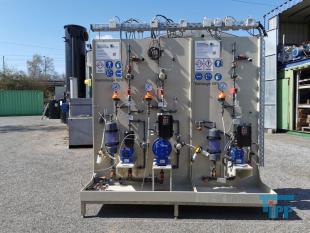

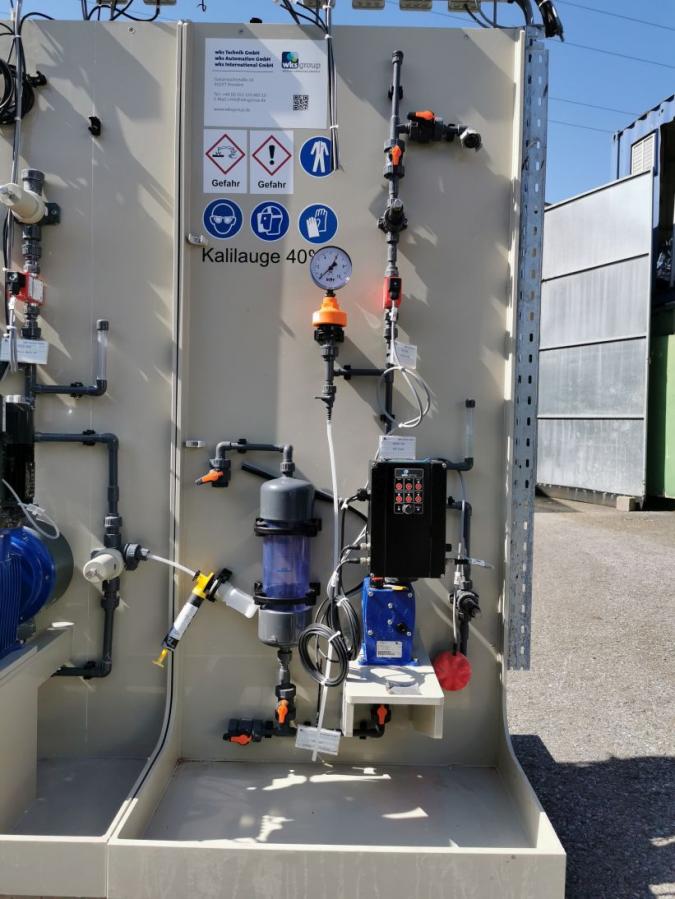

description: The dosing station consists of 3 units - each with a collecting tray - and is mounted on a frame (height 2300 cm).
Height of the drip pans per unit 90 mm.
Pump data was taken from the documentation.

Producer:	WKS
Typ:	-
Year of manufacture:	2019
Pieces:	1

technical data
-	Station 1 -
-	- - (Previous use: Dosing of KOH)

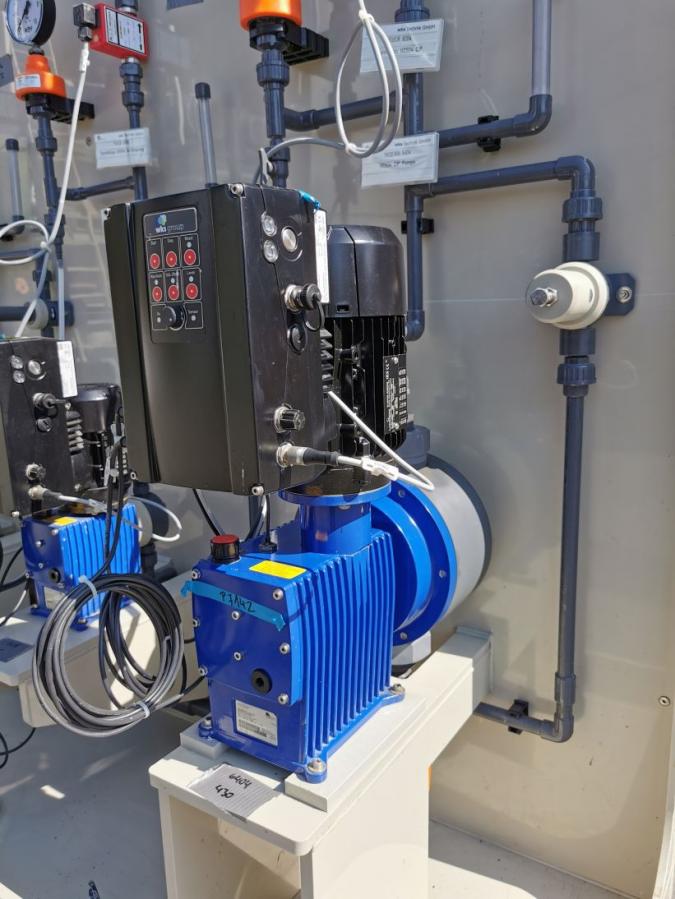

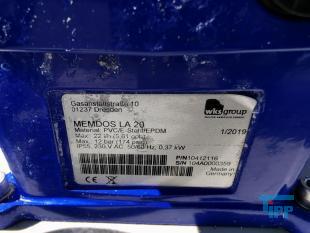

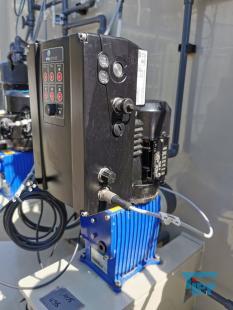

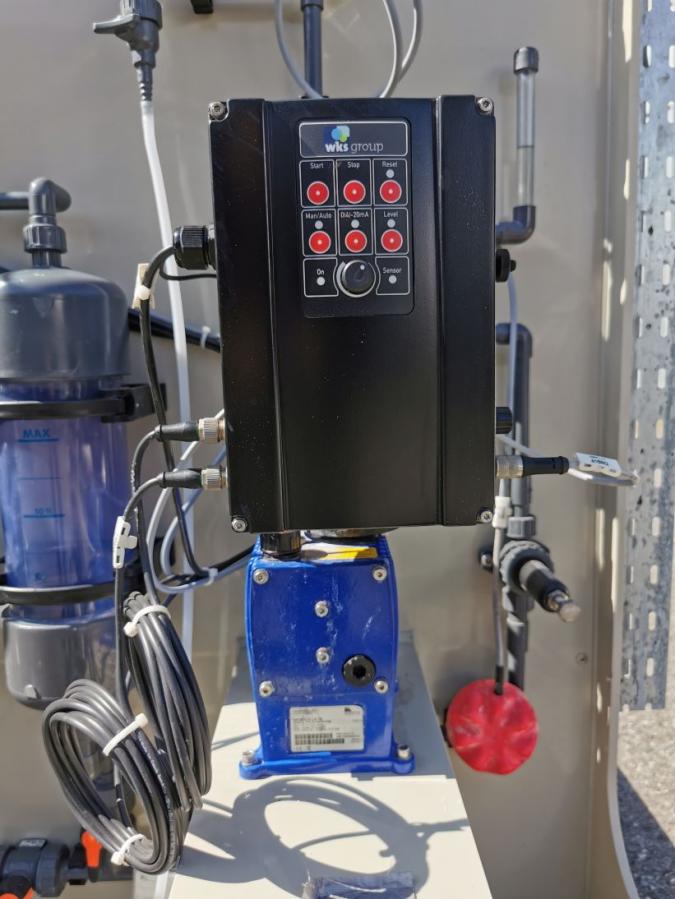

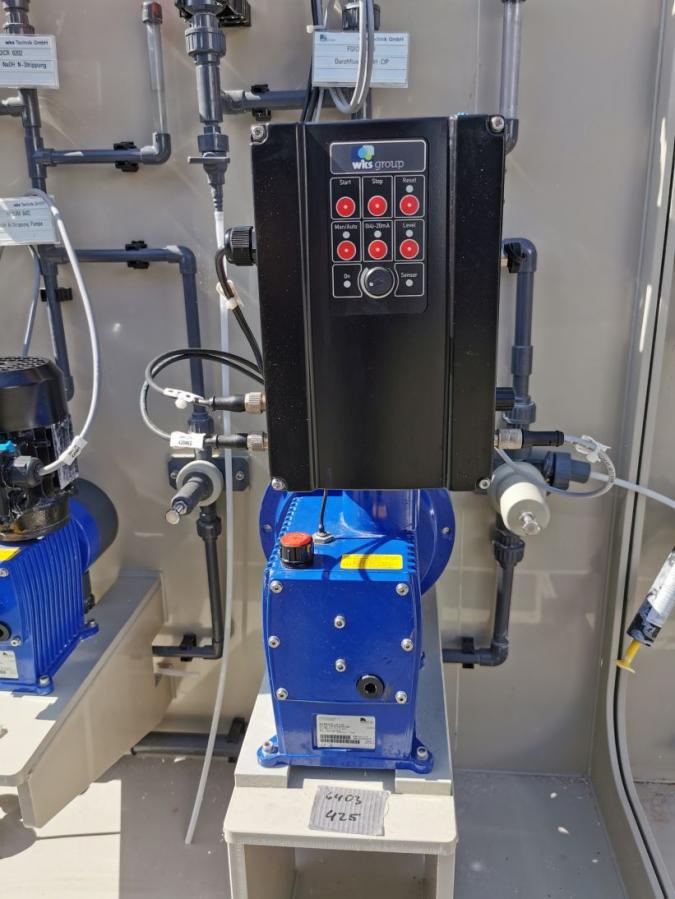

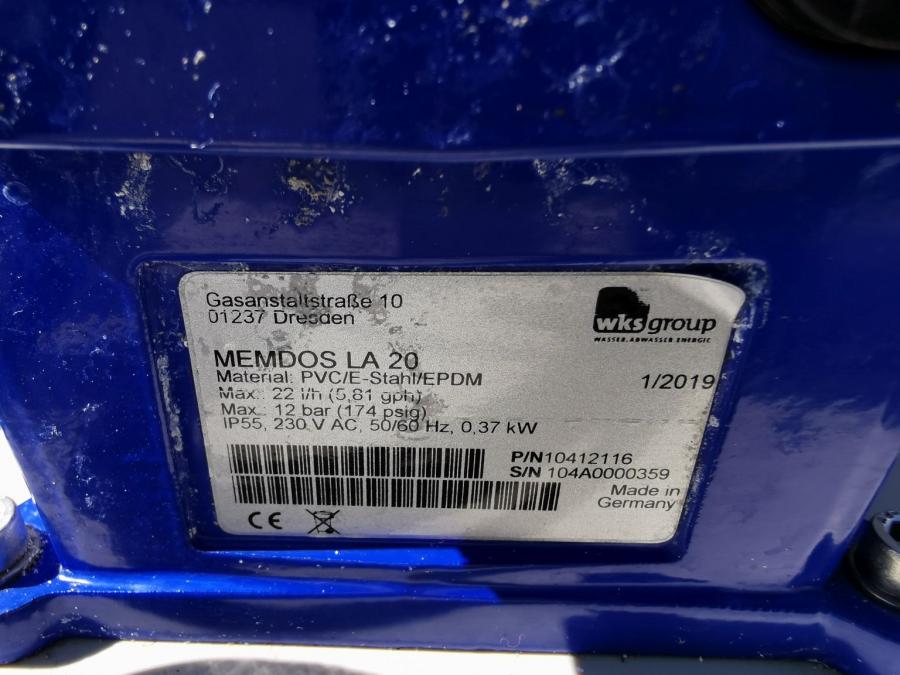

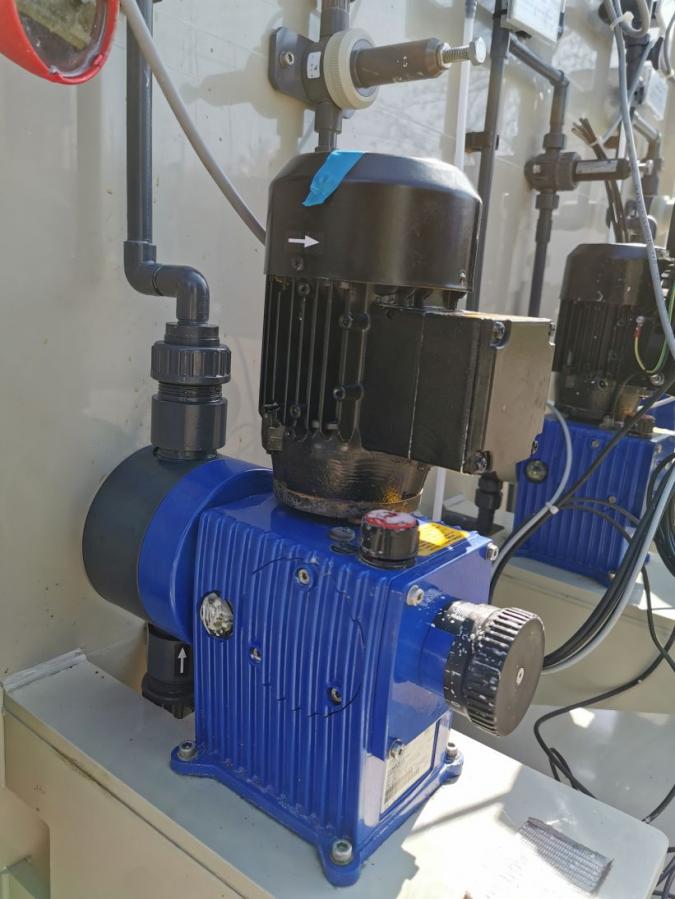

-	- - (Pump: wks MEMDOS LA 20)
Delivery rate	22 l/h (max.)
Voltage	230 V
Amperage	0,55 A
Power	0,37 kW

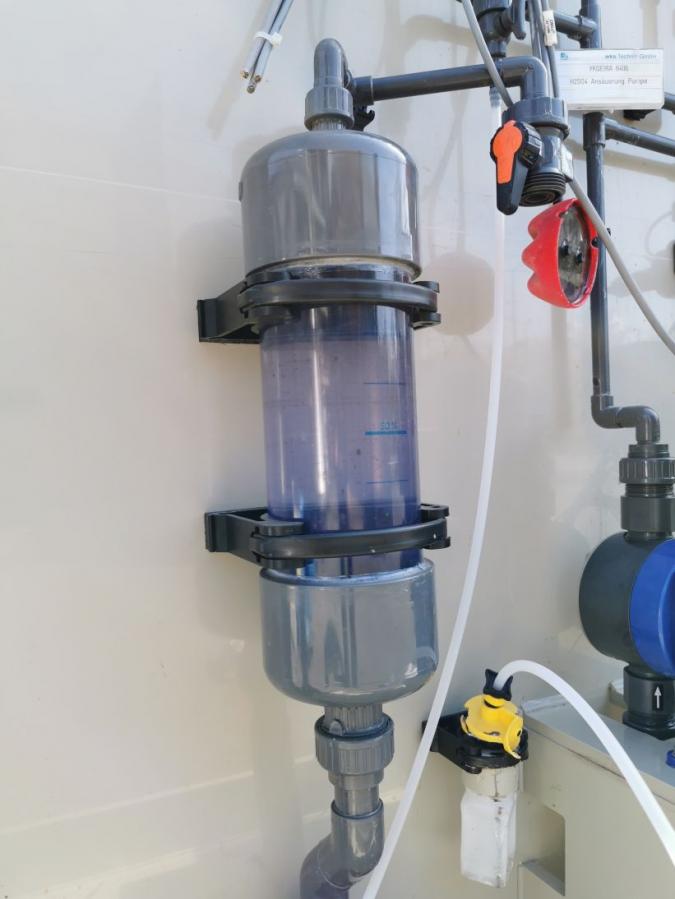

Miscellaneous	- - (Auxiliary suction pulsation damper W-AH (manual) with manual vacuum pump)

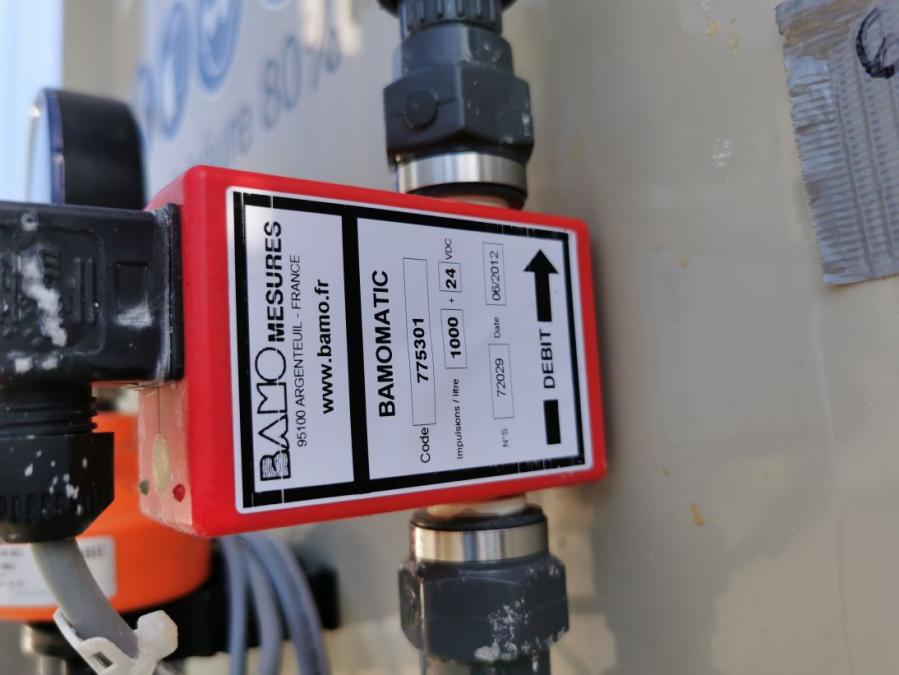

-	- - (Elektromagnetisches Durchflussmessgerät BAMO BAMOMATIC)

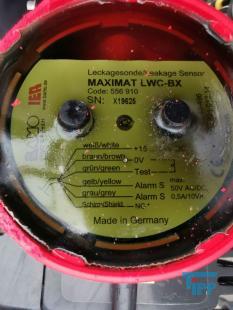

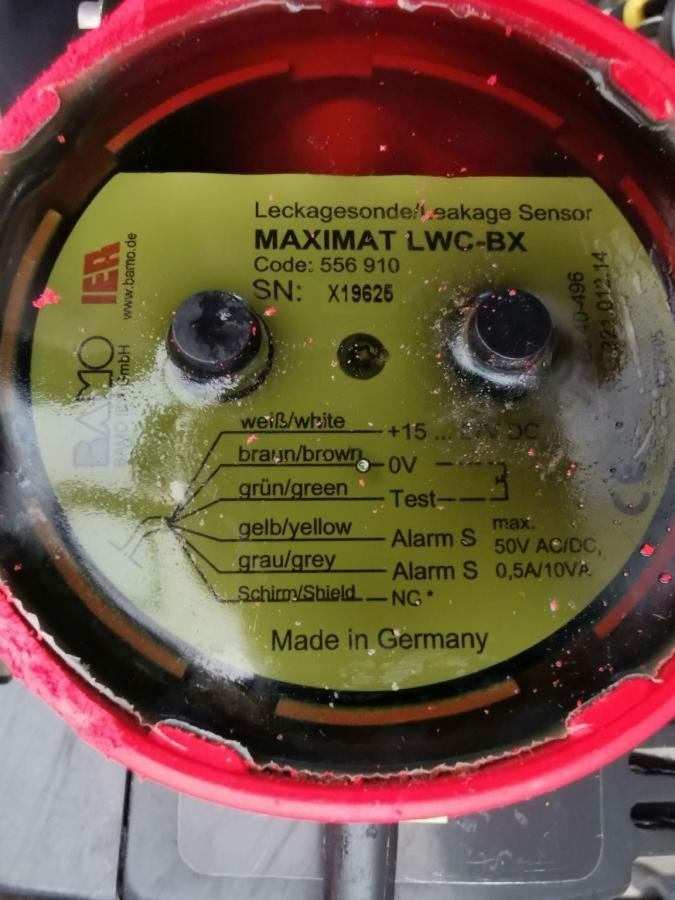

-	- - (Leakage measurement BAMO Maximat LWC BX)

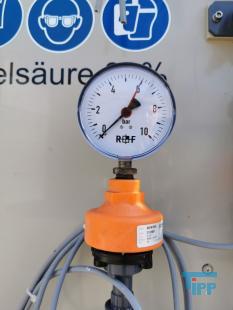

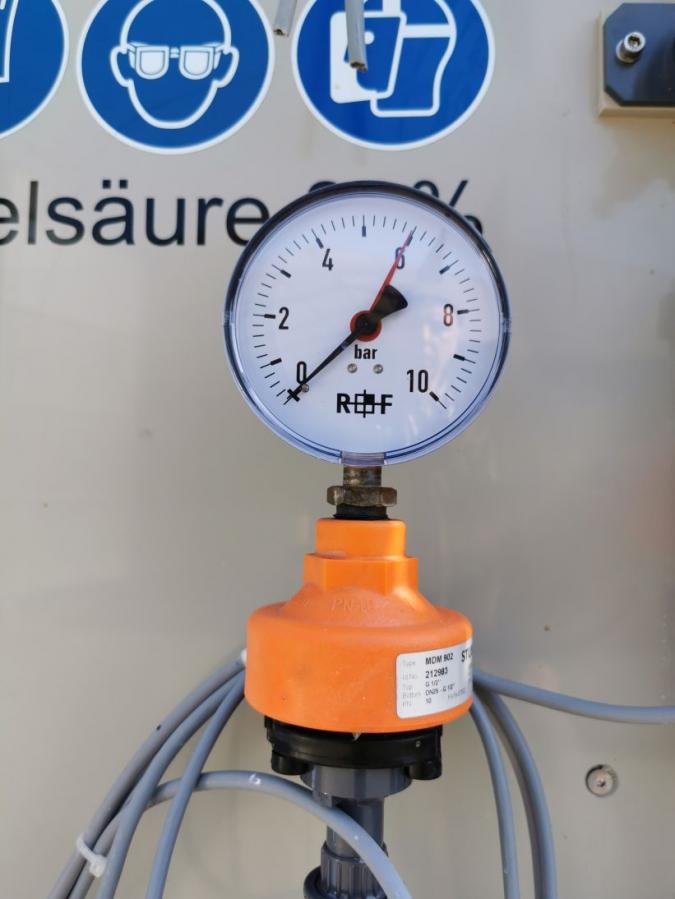

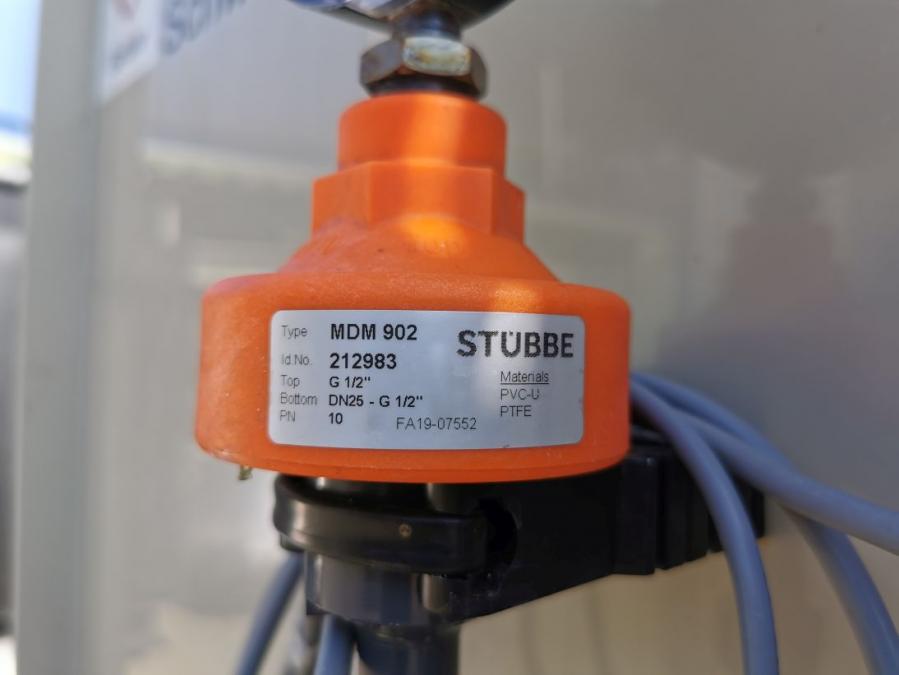

-	- - (Pressure gauge Wika 111 with diaphragm seal Stübbe MDM 902)
-	- - (Pressure maintenance and overflow valve wks)
-	- - (Ball valves Stübbe div.)
Dimensions	- mm (Height: 1800,Width: 800, Depth: 520 (without frame))

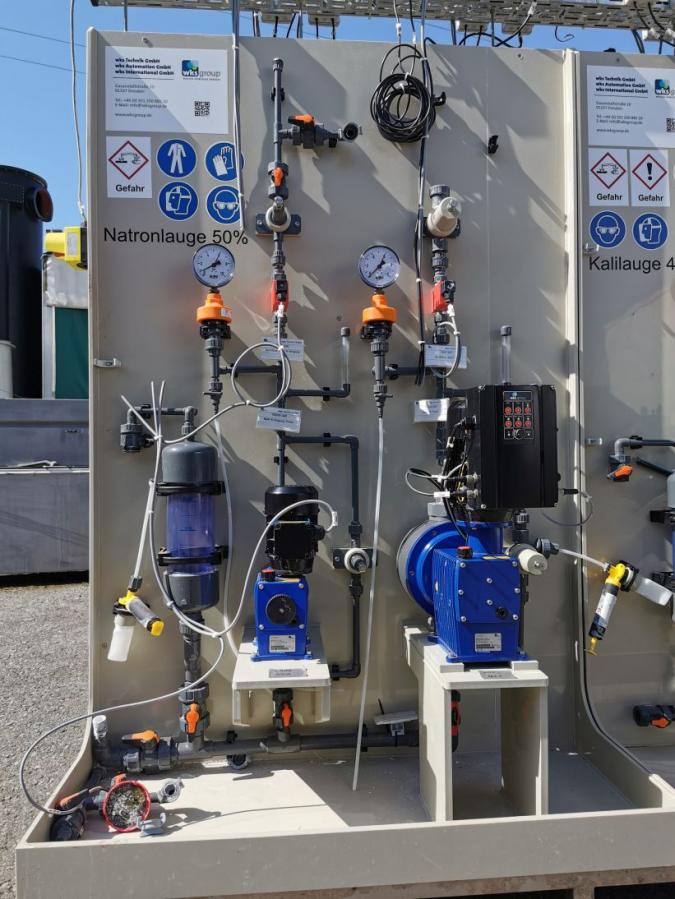

-	Station 2 -
-	- - (Previous use: Dosing of NaOH)

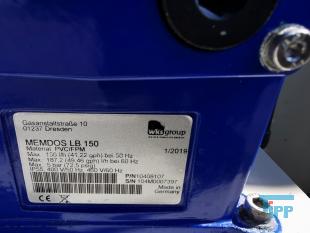

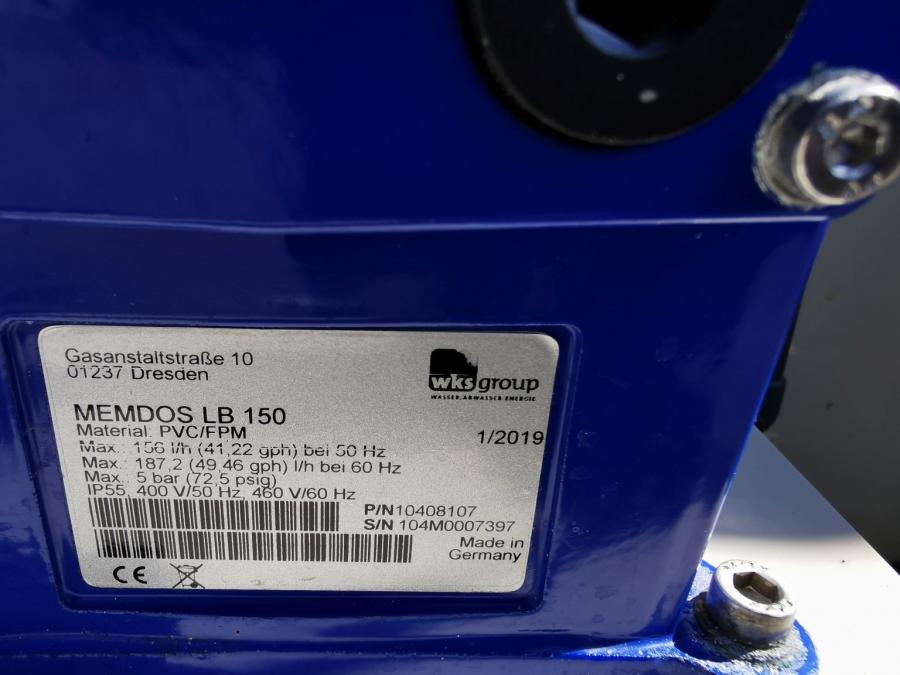

-	- - (Pump: wks MEMDOS LB 150)
Delivery rate	156 l/h (max.)
Voltage	230 V
Amperage	0,55 A
Power	0,12 kW

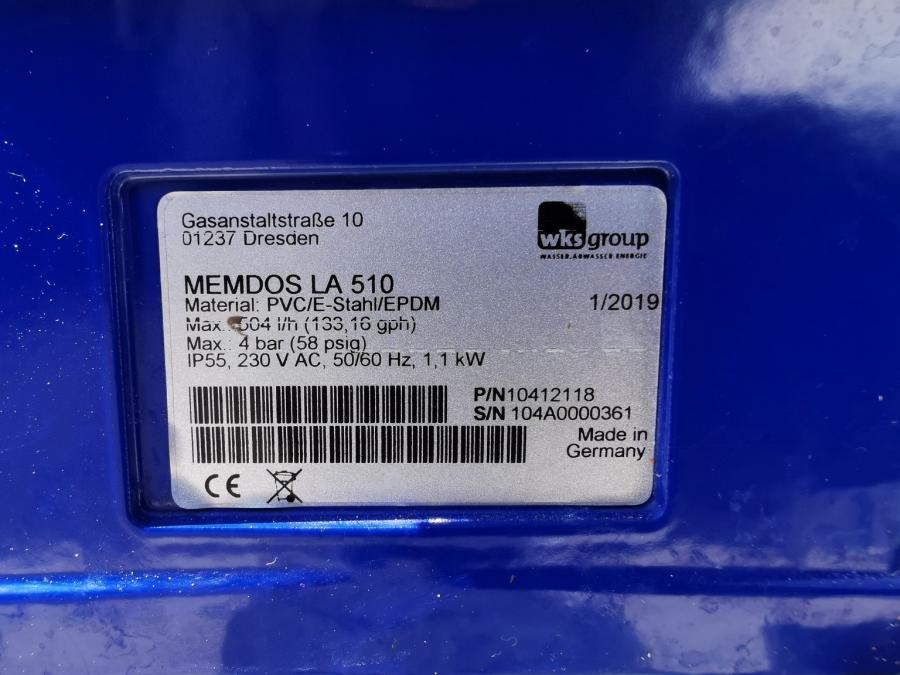

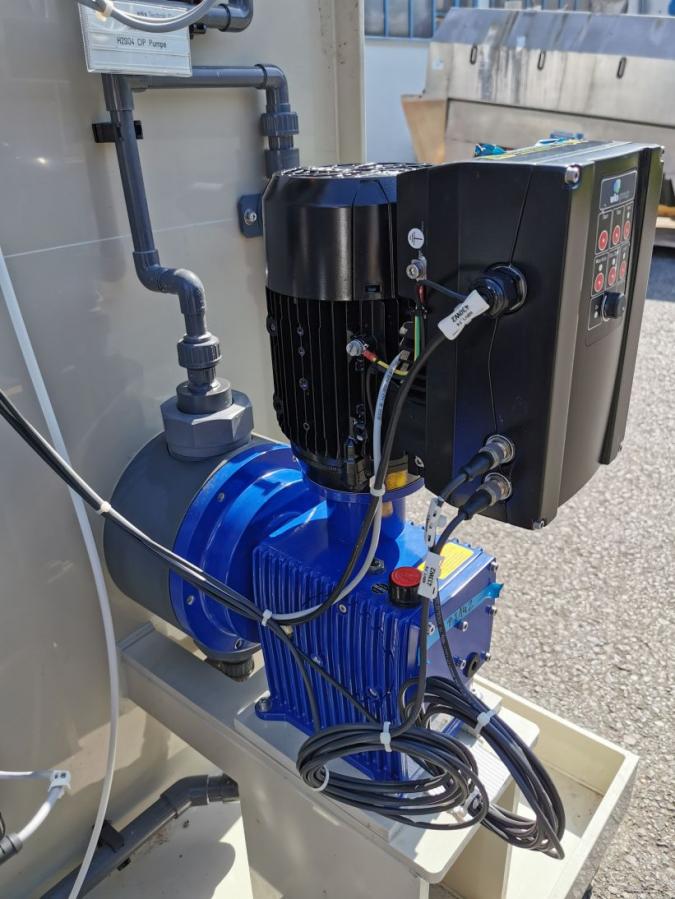

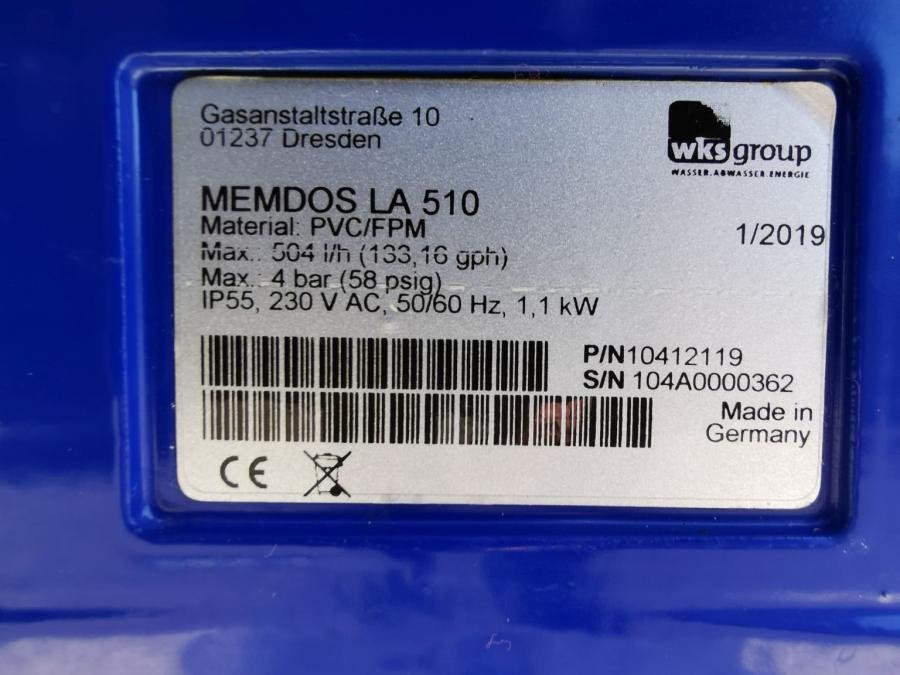

-	- - (Pump: wks MEMDOS LA 510)
Delivery rate	504 l/h (max.)
Voltage	230 V
Amperage	0,48 A
Power	1,1 kW
-	- - (Ansaughilfe-Saugpulsationsdämpfer W-AH (manuell) mit Handvakuumpumpe)
-	- - (2 x Electromagnetic flow meter BAMO BAMOMATIC)
-	- - (Leakage measurement BAMO Maximat LWC BX)
-	- - (2 x Pressure gauge Wika 111 with diaphragm seal Stübbe MDM 902)
-	- - (Pressure maintenance and overflow valves wks)
-	- - (Ball valves Stübbe div.)
Dimensions	- mm (Height: 1800, Width: 1200, Depth: 520 (without frame))

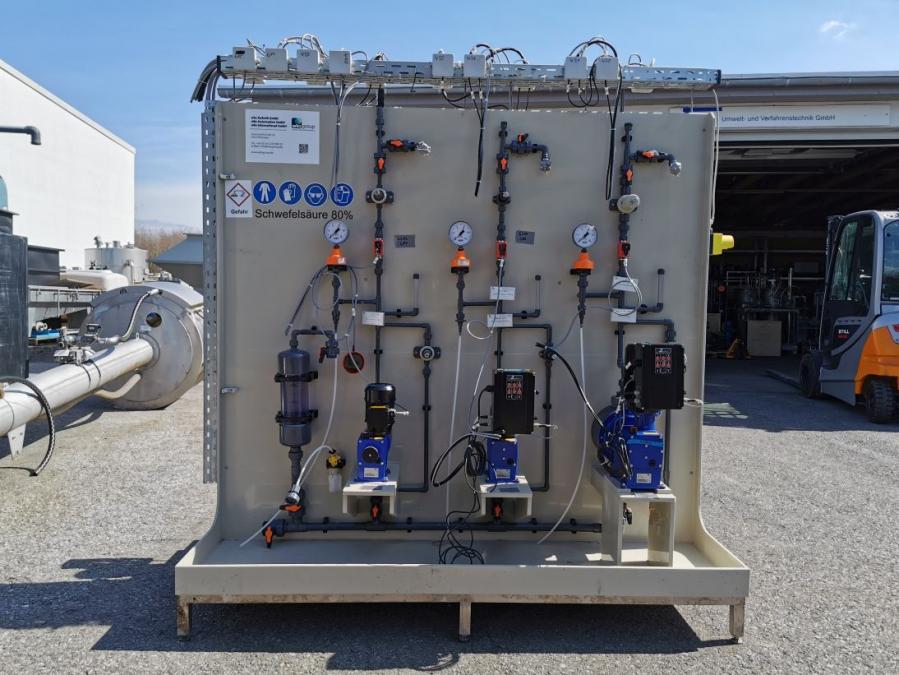

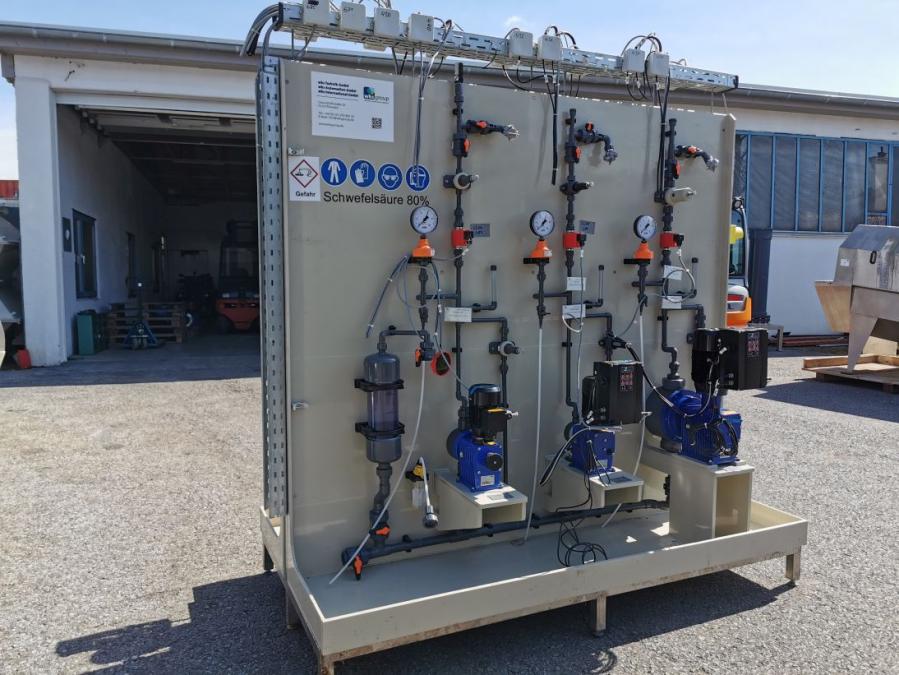

-	Station 3 -
-	- - (Previous use: Dosing of H2S04)
-	- - (Pump: wks MEMDOS LB 510)
Delivery rate	504 l/h (max.)
Voltage	230 V
Amperage	0,48 A
Power	1,1 kW

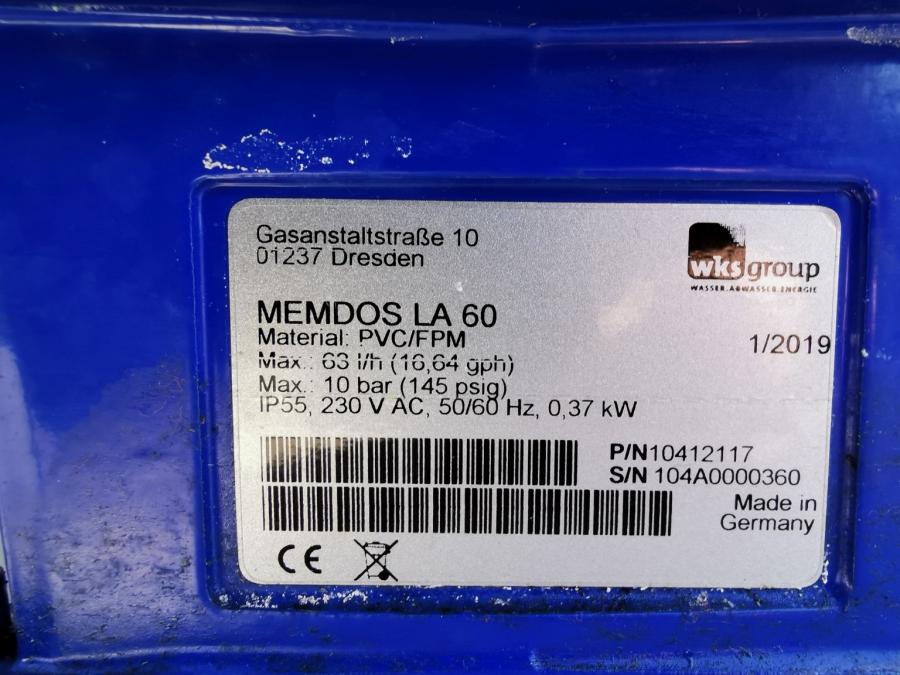

-	- - (Pump: wks MEMDOS LA 60)
Delivery rate	63 l/h (max.)
Voltage	230 V
Amperage	0,48 A
Power	0,37 kW
-	- - (Pump: wks MEMDOS LB 150)
Delivery rate	156 l/h (max.)
Voltage	230 V
Amperage	0,48 A
Power	0,12 kW
-	- - (Suction aid suction pulsation damper W-AH (manual))
-	- - (3 x Electromagnetic flow meter BAMO BAMOMATIC)
-	- - (Leakage measurement BAMO Maximat LWC BX)
-	- - (3 x Pressure gauge Wika 111 with diaphragm seal Stübbe MDM 902)
-	- - (Pressure maintenance and overflow valves wks)
-	- - (Ball valves Stübbe div.)
Dimensions	- mm (Height: 1800, Width: 2000, Depth: 520 (without frame))
