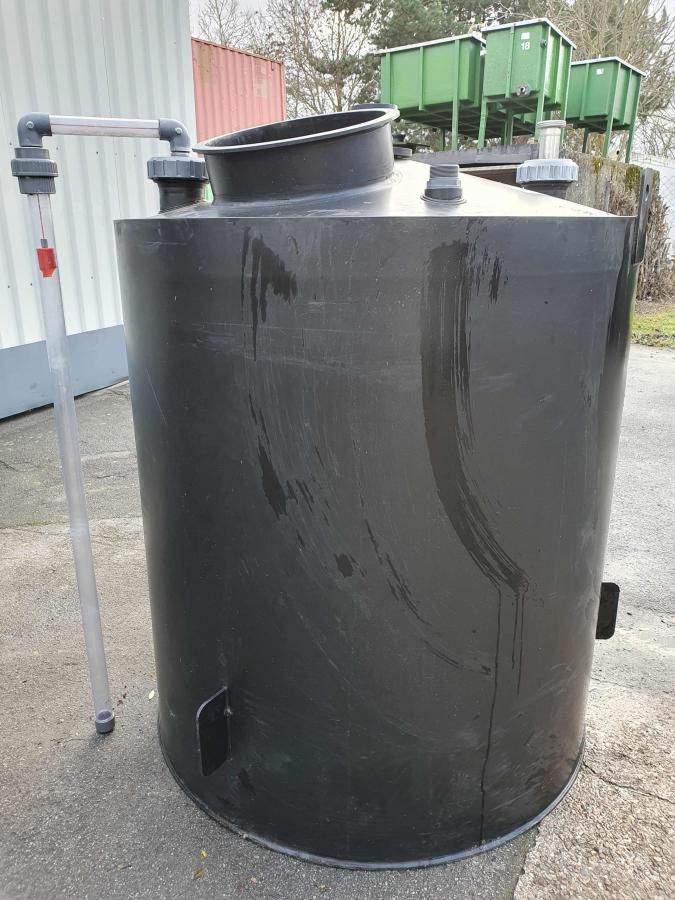

used plastic / plastic chemical storage tank with collection container, made of PE with level indicator

details to article: 29969

description: PE tanks; round tanks; storage tanks; treatment tanks with level measurement and crane pick-up. Tank made of Hostalen CRP 100 PE - weathering resistant, chemical resistant and high stress cracking resistance.

Producer:	Weber
Year of manufacture:	2002
Pieces:	1

technical data
Volume	2 m³ (volume)
Tank bottom	flach
Material	PE
Height	1340 mm (Collecting tank)
Diameter	1540 mm (Collecting tank)
Height	1500 / 1800 mm (tank / total)
Diameter	1300 mm (tank)
Width	1410 mm (with connection flange)

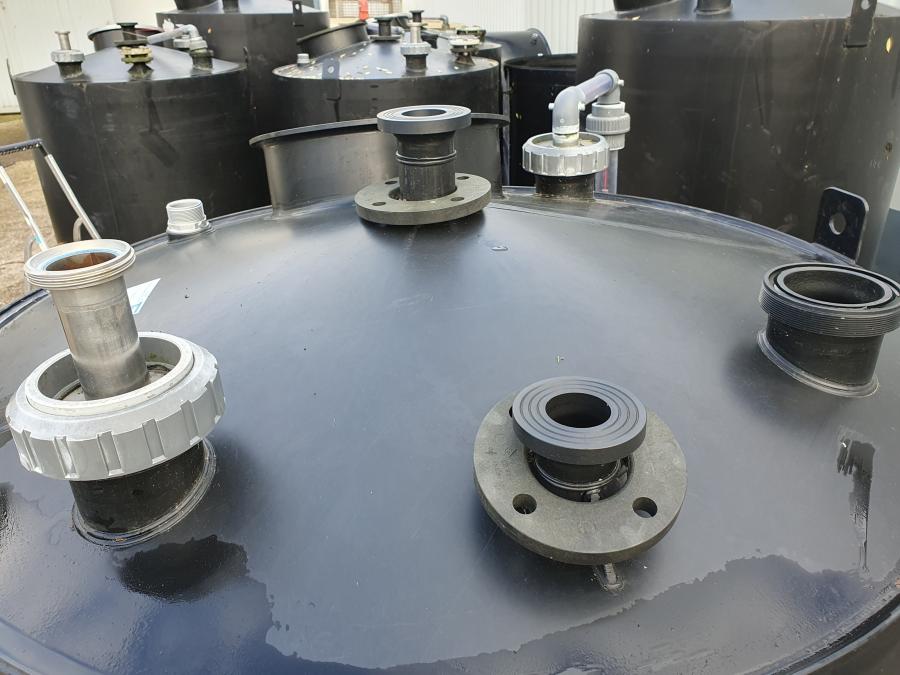

Connections	- (Top: 400 mm diameter mounting hole, 1 x 2 inch DN 50, 1 x flange DN 65, 3 x 5 inch connections, 1 x DN 50 to 5 inch with stainless steel pipe, 1 x riser pipe with level indicator DN 65)
Connections	- (Below: 1 x flange D 140)
Temperature	20 - 30 °C ()
Weight	100 kg ()
