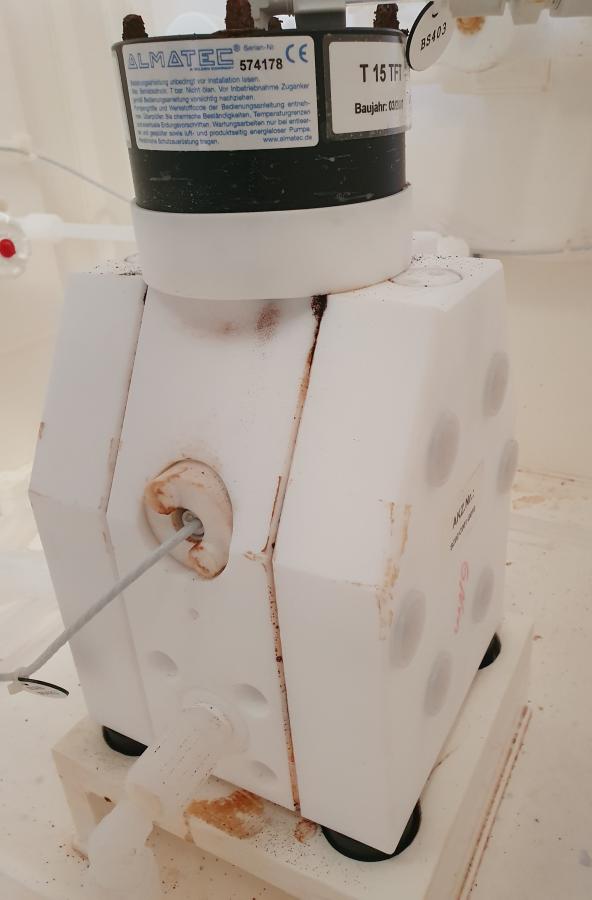

used air operated diaphragm pump in solid construction with pulsation damper made of PTFE
details to article: 29855
description: A-Series pumps operate on the principle of double diaphragm pumps. Pumped media would be: Slurries, acids, alkalis, solvents, etc.
| Producer: | ALMATEC |
| Typ: | A15 TTZ-C8 |
| Year of manufacture: | 2007 |
| Pieces: | 1 |
technical data |
| Connections | 1/2 `` (Nominal connection size NPT) | | Connections | R 1/4 (Air connection) | | Weight | 10 kg | | Material | PTFE | | - | 4 mm (Max. Solid particle size) | | Suction head | 2 (dry) | | Suction head | 9,5 (filled) | | Pressure | 7 bar () | | Delivery rate | 3.2 m³/h (max) | | Temperature | 120 °C (max. operating temperature) | | Length | 166 mm | | Width | 176 mm | | Height | 320 mm |
|
|
