technical data |

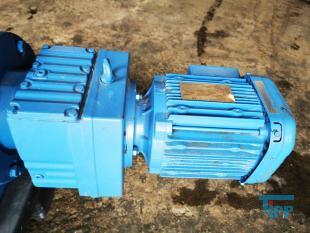

| Delivery rate | 2.2 m³/h (measured by pump test) | | Pressure | 2.3 bar (max.(measured by pump test)) | | Connections | DN 100 (Suction side) | | Connections | DN 65 (Pressure side) | | Dimensions | mm | | Length | 1560 mm | | Width | 320 mm (incl. stands) | | Height | 300 mm (incl. stands) | | Height | 230 mm | | Weight | 170 kg (approx.) | | Engine | SEW-EURODRIVE (RF67 DRE90L4/TF) | | Voltage | 400 V | | Frequency | 50 Hz | | Power | 1.5 kW | | Amperage | 3,45 A | | Rotations | 1430 1/min | | Defects | leichte (Stator / rotor not completely tight, power connection cover missing, terminal strip damaged) | | Video | |
|
|
