technical data |
| Volume | 1.6 m³ |
| Tank bottom | flach |
| Material | PP (PP-H) |
| Height | 2200 mm (tank) |
| Height | 2600 mm (total) |
| Diameter | 1060 mm (tank) |
| Width | 1300 mm (total) |

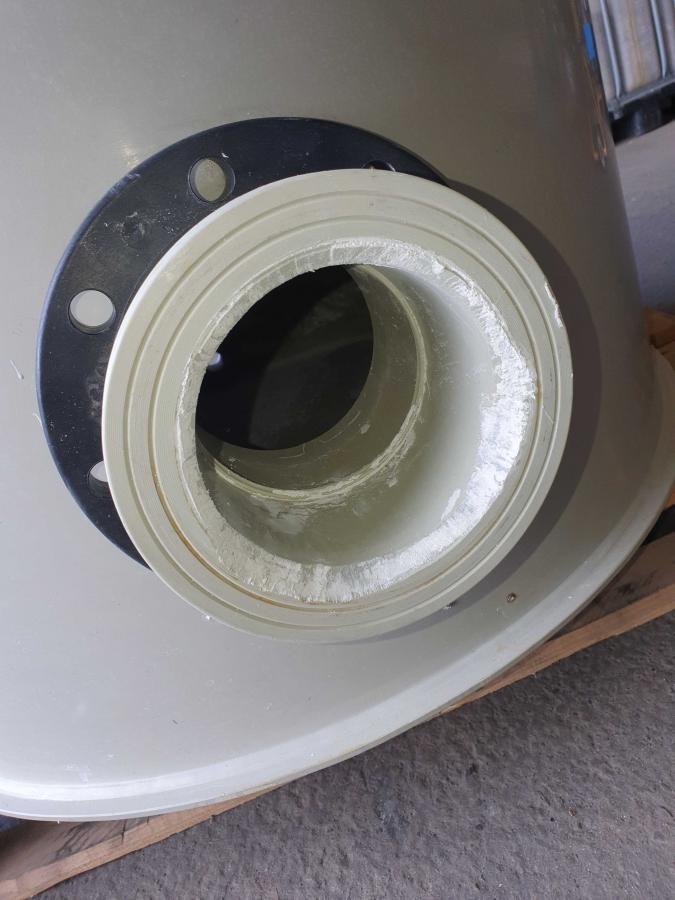

| Connections | 1 x DN200, 1 x DN150, (aside) |
| Connections | 1 x DN50 (Drainage sideways) |
| Connections | 2 x DN100, 2 x DN50 (on top) |
| Miscellaneous | 460 x 930 mm (mounting hole) |
| Miscellaneous | (Shutoff Valve) |
| Accessories | E+H Mycom S CPM153 (pH/redox converter) |
| Accessories | E+H Liquisys-M CPM253 (redox converter) |
| Accessories | Liquipoint T FTW 31 (Conductive level detector) |
| Accessories | E+H Remote Display FHX40 |
| Accessories | E+H Level-Radar Micropilot M FMR245 (Level measurement) |
