unused pumpstation with magnetic clutched gear pump, unused
details to article: 29755
description: Pump station with Witte pump and SEW gear motor in the frame
e.g. for the lubrication of turbines
| Producer: | Witte Pumps & technology GmbH |
| Typ: | CHEM 46.3-4 |
| Year of manufacture: | 2012 |
| Pieces: | 1 |
technical data |

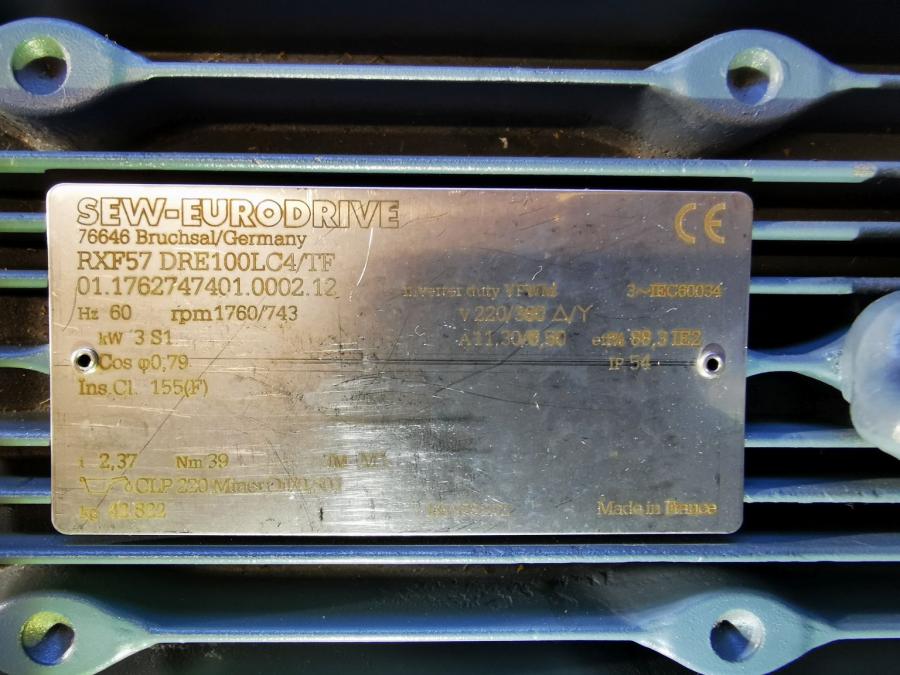

| Power | 0.0334 m³/h | | Pressure | 3 bar | | Rotations | 722 | | Material | Edelstahl (1.4571 - pump head) | | Engine | SEW-Eurodrive RXF57 DRE100LC4/TF | | Power | 2.2 kW | | Frequency | 50 Hz | | Rotations | 1760 1/min | | Protection rating | IP 54 IP | | Connections | DN 50/60 | | Accessories | (Mankenberg overflow valve 5.1F) | | Accessories | (Manometer (3x)) | | Width | 1200 mm | | Height | 1530 mm | | Depth | 1100 mm | | Weight | 120 kg | | Video | |
|
|
