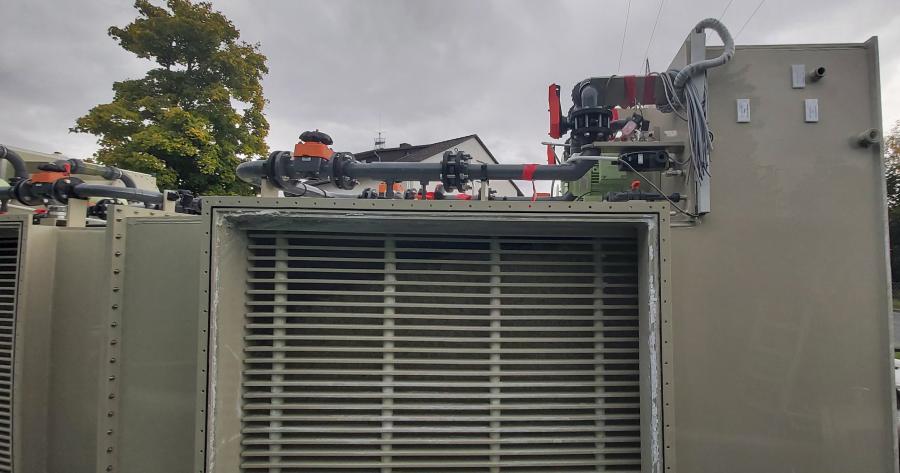

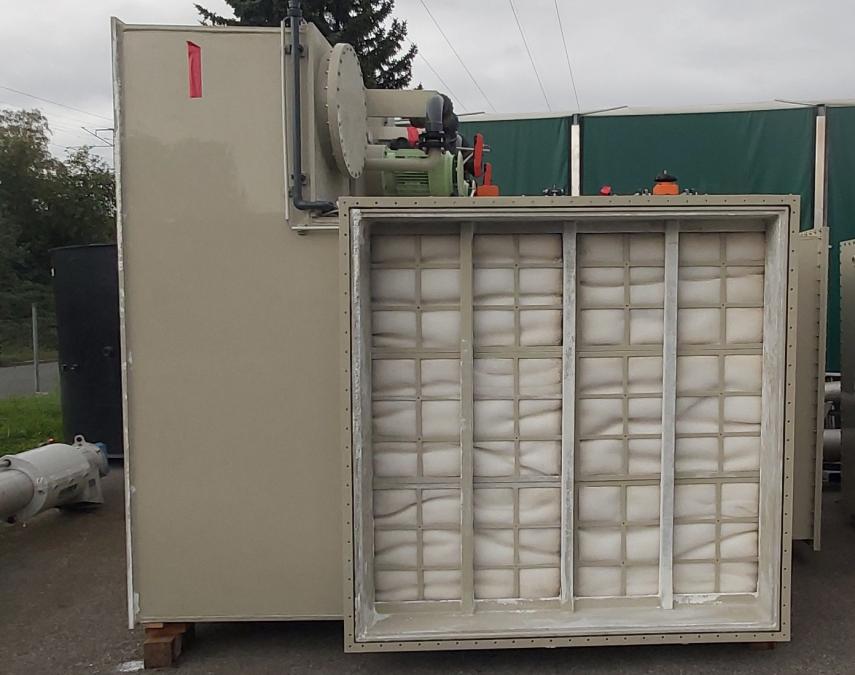

used compact air scrubber with control cabinet / air washer / exhaust air system / gas scrubber for acidic gases

details to article: 29681

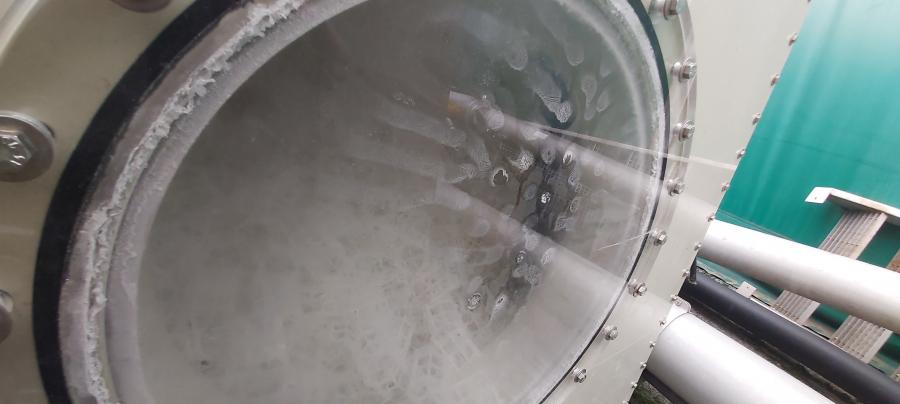

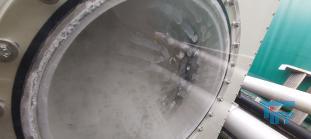

description: Horizontal single-stage exhaust air scrubber with integrated liquid tank, packing and mist eliminator for cleaning exhaust air containing acids and lyes. Principle: A scrubbing liquid is injected into the horizontally inflowing exhaust air in a circuit. Water-soluble impurities are washed out by adding alkalis or acids.

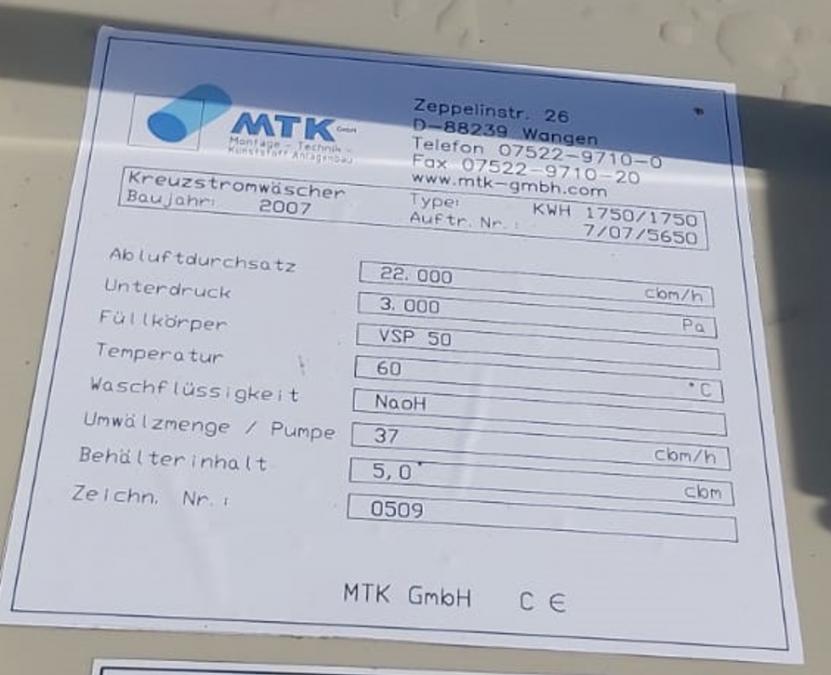

Producer:	MTK
Year of manufacture:	2007
Pieces:	1

technical data
Volume flow rate	22000 m³/h (Air volume)
Pressure	3000 Pa (Pressure min / max)
Temperature	60 °C (Exhaust air temperature max.)
Material	PP (Housing / piping)

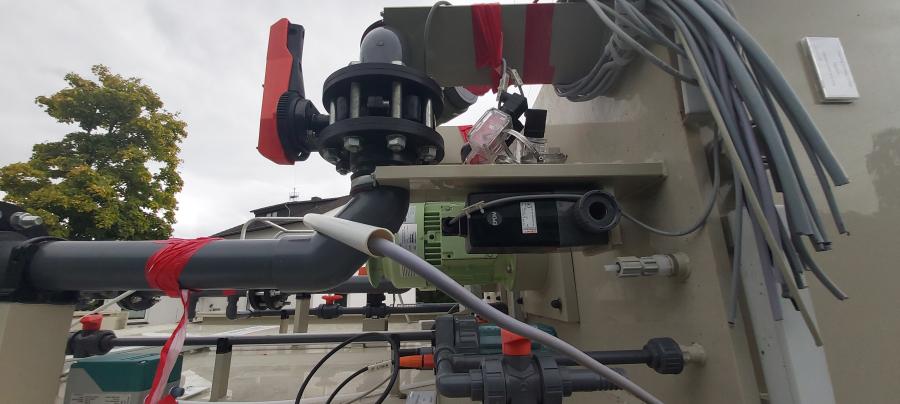

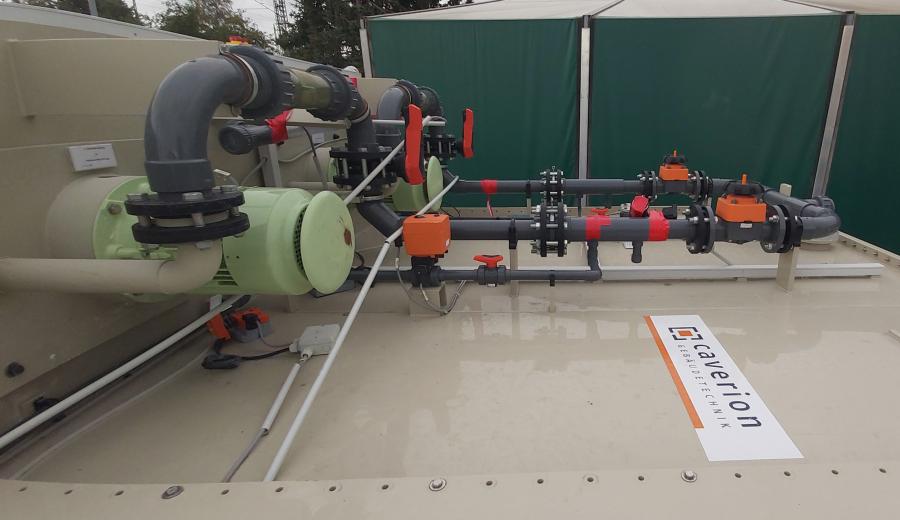

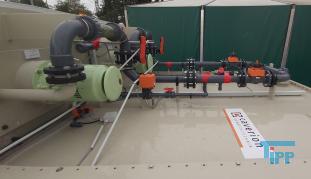

Accessories	(2x circulating pump)
Delivery rate	37 m³/h (max.)
Power	7,5 kW
Rotations	2930 1/min
Dimensions	- (Exhaust air scrubber)
Depth	2630 mm
Length	3020 mm
Height	3700 mm
Content	5 m³ (.tank)

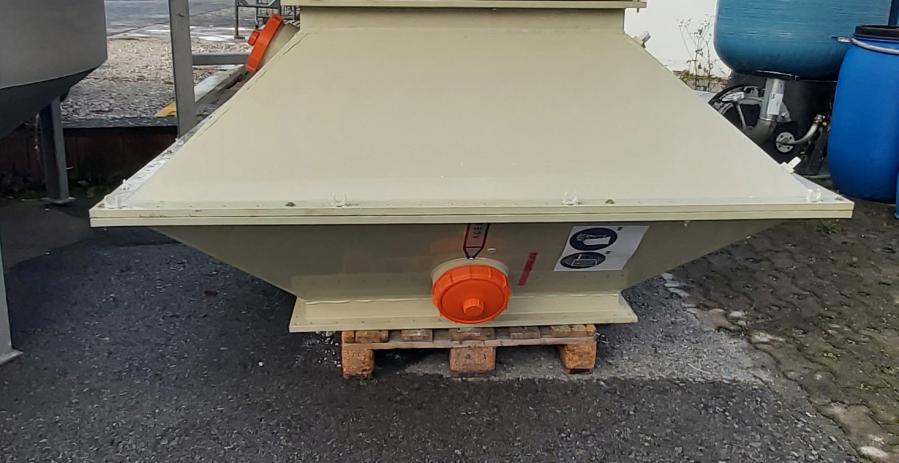

Dimensions	1900 x 1900 / 1000 x 1000 mm (funnel air connection)

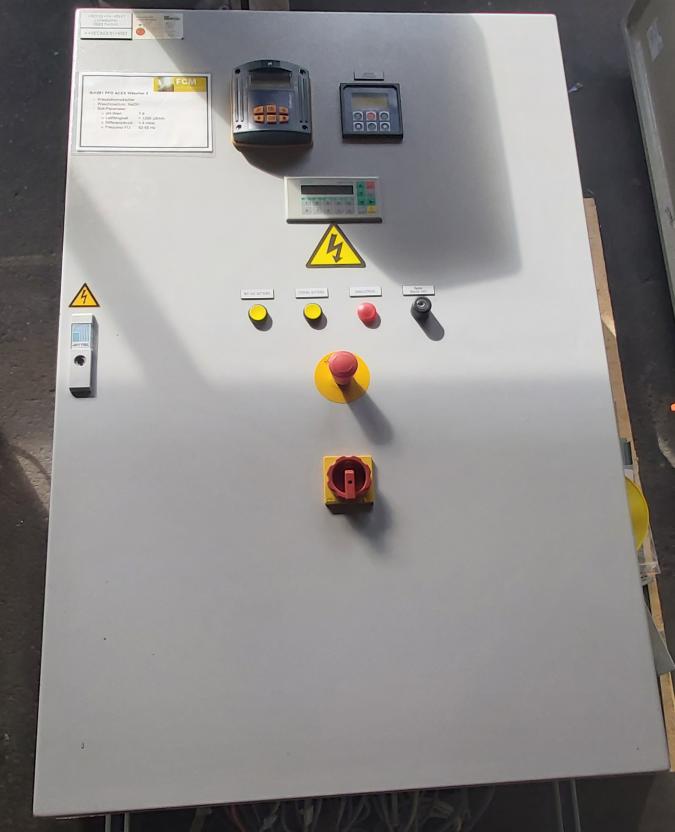

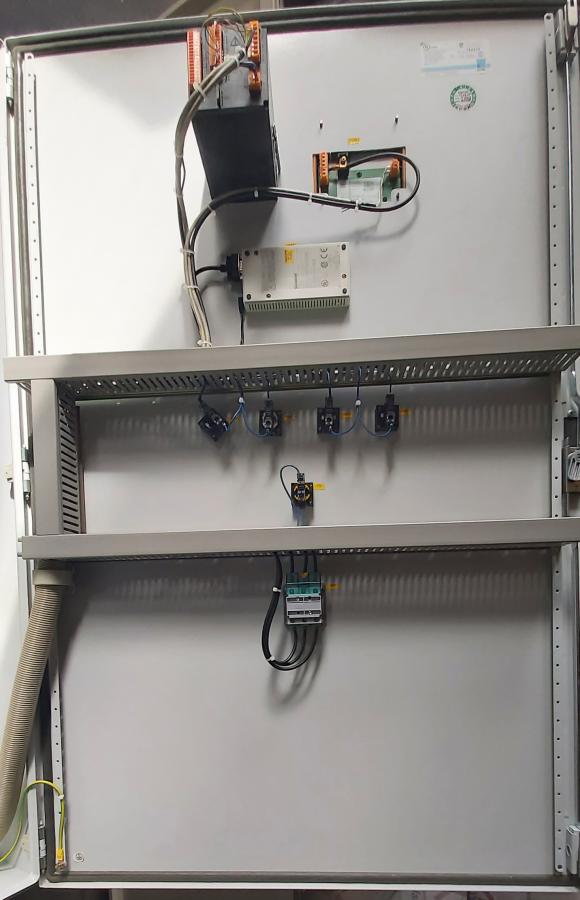

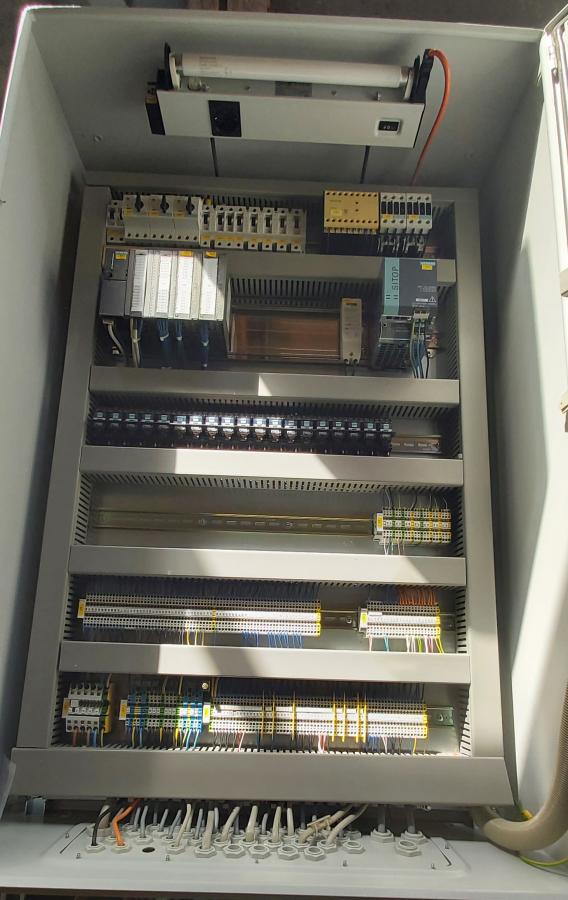

Steering	Simatic S7-300
Miscellaneous	(pH value measurement)
-	VSP 50 (filling material)
Temperature	60 °C
