used dyeing basin / dyeing plant made of stainless steel with heating and sink
details to article: 29567

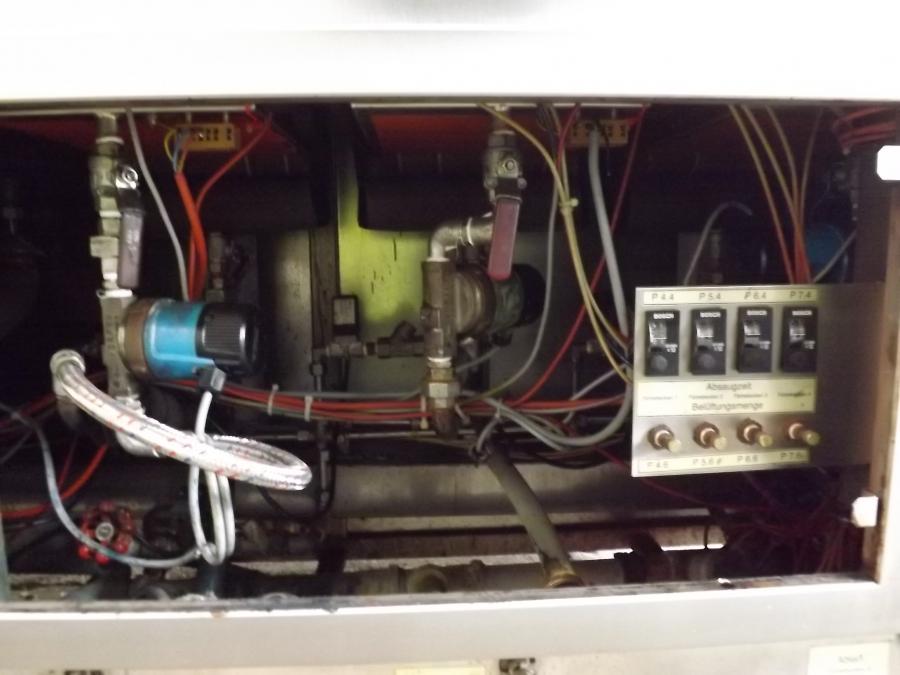

description: The dyeing machine was used to dye and rinse eyeglass lenses with aqueous colors at high temperatures. For this purpose, the liquid temperature can be heated to approx. 95 ° C. The built-in circulation pumps ensure the necessary circulation of the liquid.
The system consists of 4x dyeing basins. 1x sink as well as pumps and temperature controls.
| Producer: | GTB Gerätetechnik |
| Typ: | 3B-30/20/30/-FB/SP/FB |
| Year of manufacture: | 2003 |
| Pieces: | 1 |
technical data |
| Voltage | 3x 400 V | | Amperage | 20 A | | Content | 30 /10 / 20 l (1x dyeing basin / 3x dyeing basin / 1x sink) | | Power | 4,5 / 1,48 / 4,5 kW (1x dyeing basin / 3x 1.48 dyeing basins / 1x sink) | | Power | 115 W (Pump output dyeing basin) | | Temperature | 95 °C (Max dye basin / max sink) | | Dimensions | 2230 x 660 x 1060 mm (Length / Width / Height) | | Steering | Siemens LOGO |
|
|
