used dyeing basin / dyeing plant made of stainless steel with heating and sink
details to article: 29563

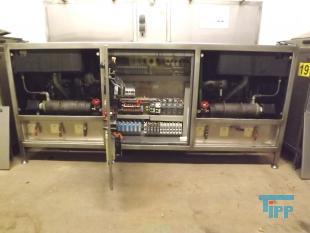

description: The dyeing system was used to dye and rinse eyeglass lenses with aqueous colors at high temperatures. For this purpose, the liquid temperature can be heated to approx. 95 ° C. The built-in circulation pumps ensure the necessary circulation of the liquid.
The system consists of 6 x dyeing basins. 2x sink, 1x drip tray as well as pumps and temperature controls.
| Producer: | GTB Gerätetechnik |
| Typ: | 8B-10/16-FB/SP |
| Year of manufacture: | 2003 |
| Pieces: | 1 |
technical data |
| Voltage | 3x 400 V | | Amperage | 32 A | | Content | 10 / 16 l (per dye basin / per sink) | | Power | 1,5 / 4,5 kW (per dye basin / per sink) | | Power | 115 W (Pump output dyeing basin) | | Temperature | 95 / 50 °C (Max dye basin / max sink) | | Dimensions | 2230 x 720 x 1470 mm (Length / Width / Height) |
|
|
