used chemical dosing cabinet with electric control
details to article: 29489
description: The cabinet (hydrochloric acid tank module) is completely closed with cabinet exhaust air, supply air filter, compressed air unit as well as with a compressed air diaphragm pump. The tank module was used to convey the delivered chemical through the filters into a storage tank.

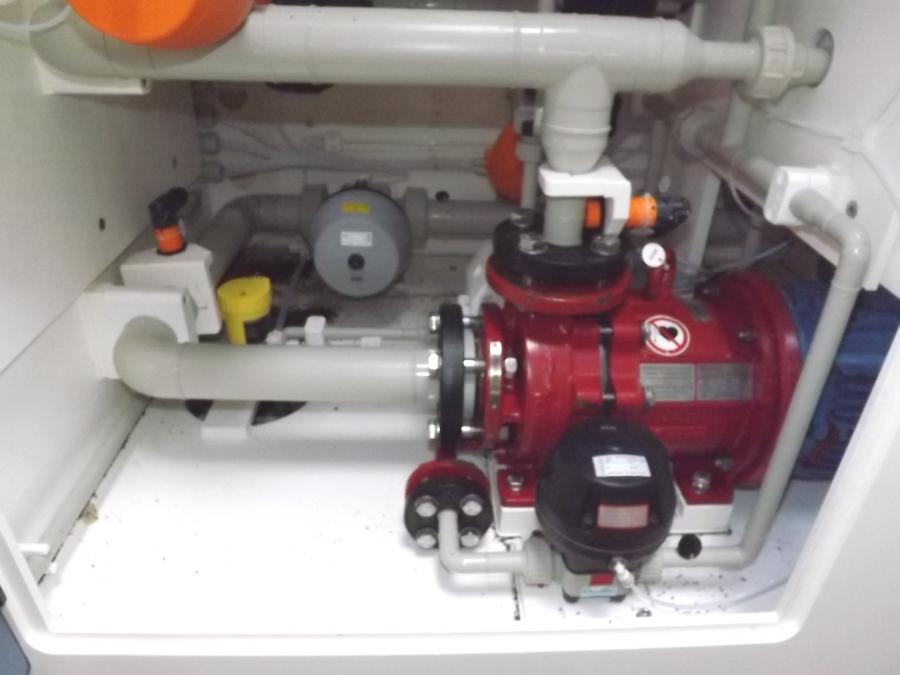

The equipment is of very high quality and can be used for many chemicals.1x Almatec Futur 50T, valve and filter units, sampling box, flow controller with pressure transducer, flushing by spray gun, compressed air unit and E cabinet.
| Producer: | Kinetics |
| Typ: | Almatec Futur 50T |
| Year of manufacture: | 2010 |
| Pieces: | 1 |
technical data |
| Connections | - (Chemical inlet on the side, exhaust air and supply air filter on the top) | | Description | - (Almatec Futur 50T) | | Delivery rate | 3 m³/h | | Lifting height | 6 m | | Further information | (doors made of PVC) | | Dimensions | (Length 2100 / width 1050 / height 2100mm total with assembly without stand) | | Weight | 600 kg (approx.) |
|
|
