used chemical dosing cabinet with electric control

details to article: 29485

description: The cabinet is completely closed with cabinet exhaust air, supply air filter, compressed air unit as well as a chemical centrifugal pump and compressed air diaphragm pump. With the unloading module, the delivered chemical was conveyed through the filter into a storage tank.
The system is of very high quality and can be used for many chemicals.

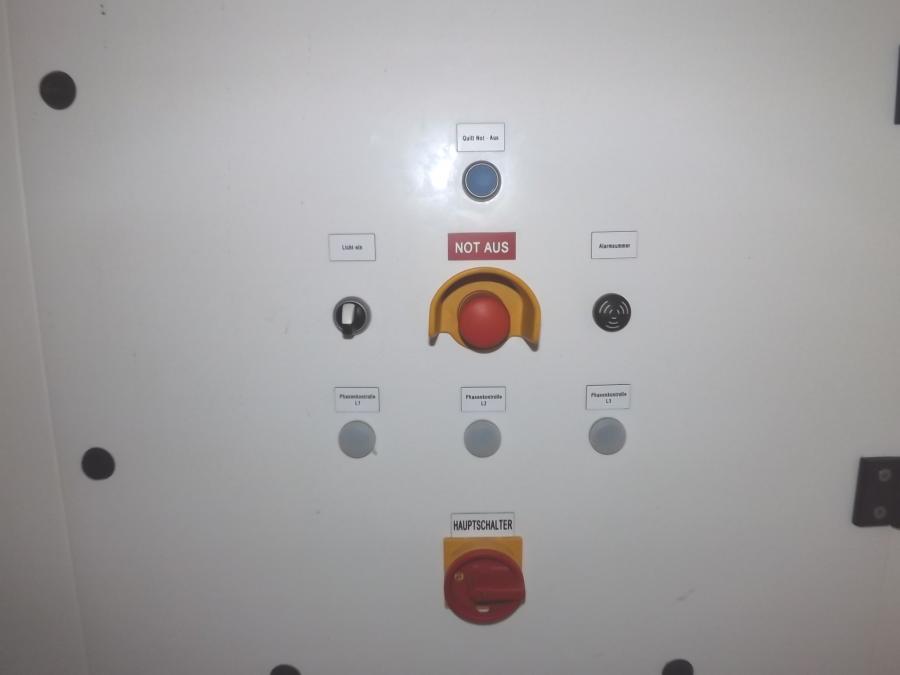

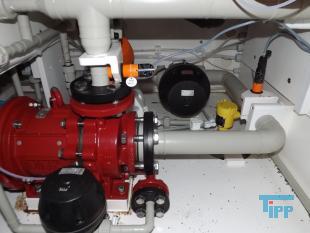

1x centrifugal pump (manufactured by Richter type MNK-B / F-P 50-32-125) / 1x Almatec Futur 50T, valve and filter units, sampling box, flow regulator with pressure sensor, flushing with a spray gun, compressed air unit and electrical cabinet

Producer:	Kinetics
Typ:	Richter Typ MNK-B/F-P 50-32-125, Almatec Futur 50T
Year of manufacture:	2010
Pieces:	1

technical data
Connections	- (Chemical inlet on the side, exhaust air and supply air filter on the top)
Description	Richter MNK-B/F-P 50-32-125
Delivery rate	30 m³/h
Lifting height	30 m (max.)
Power	4 kW ()
Description	Almatec Futur 50T
Delivery rate	3 m³/h
Pressure	6 bar (max.)
Further information	(doors made of PVC)
Dimensions	(Length 2100 / width 1050 / height 2100mm total with assembly without stand)
Weight	600 kg (approx.)
