used chemistry supply system

details to article: 29483

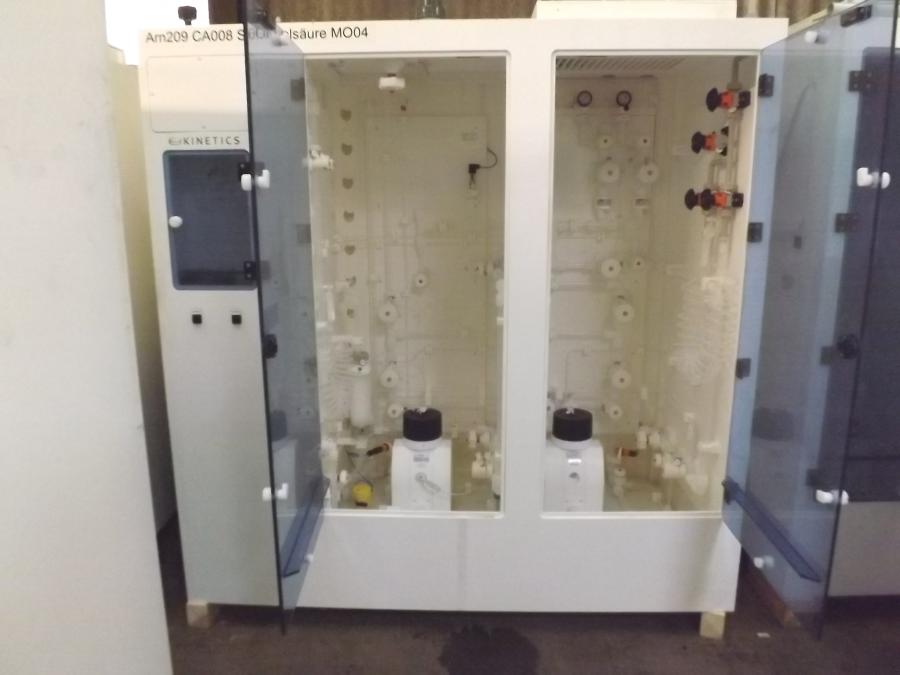

description: Dosing station / pumping station for dosing dangerous liquid chemicals. The cabinet is completely closed with cabinet exhaust air, supply air filter, compressed air unit and compressed air diaphragm pumps. With the dosing station, the chemical was pumped from the fixed tank or IBC into the distribution network.
The system is of very high quality and can be used for many chemicals.

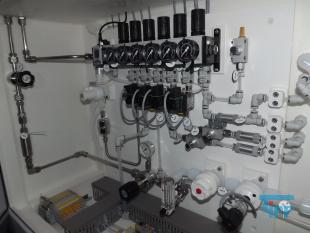

1x Almatec E10TTT, valves, sampling box, flow regulator with pressure sensor, flushing with a spray gun, compressed air unit, switch cabinet with control panel (touch screen) and interface.

Producer:	Kinetics
Typ:	Almatec E10TTT
Year of manufacture:	2010
Pieces:	1

technical data
Connections	- (Inlet and outlet connections for chemicals, exhaust air and supply air filters on the top)
Description	- (Compressed air membrane pump Almatec E10 TTT)
Delivery rate	1.4 m³/min (max. at 7 bar)
Height	3 / 9 m (Suction lift dry / product-filled)
Pressure	7 bar ()
Further information	(doors made of PVC)
Dimensions	(Length 2100 / width 1050 / height 2100mm total with assembly without stand)
Weight	500 kg (approx.)
Further information	- (Cabinet emptying canceled (lower edge of cabinet))
