used chemistry supply system

details to article: 29481

description: The cabinet (hydrochloric acid tank module) is completely closed with cabinet exhaust air, supply air filter, compressed air unit as well as with compressed air diaphragm pump. The tank module was used to convey the delivered chemical through the filters into a storage tank.

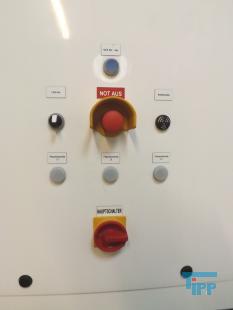

The unit has a very high quality finish and can be used for many chemicals. 1x Almatec A10TT, valve and filter units, sampling box, flow controller with pressure transducer, rinsing by spray gun, compressed air unit and electrical cabinet

Producer:	Kinetics
Typ:	HCL
Year of manufacture:	2010
Pieces:	1

technical data
Connections	- (Chemical inlet on the side, exhaust air and supply air filter on the top)
Description	Almatec A10
Further information	(doors made of PVC)
Dimensions	(Length 2100 / width 1050 / height 21000mm total with assembly without stand)
Weight	600 kg (approx.)
Delivery rate	1.4 m³/h (max. at 6 bar)
