used chemical dosing cabinet

details to article: 29479

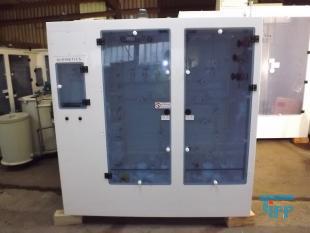

description: Dosing station / pumping station for dosing hazardous liquid chemicals. The cabinet is completely closed with cabinet exhaust air, supply air filter, compressed air unit. The dosing station was used to pump the chemical from the fixed tank or IBC into the distribution network.
The system is of very high quality and can be used for many chemicals.

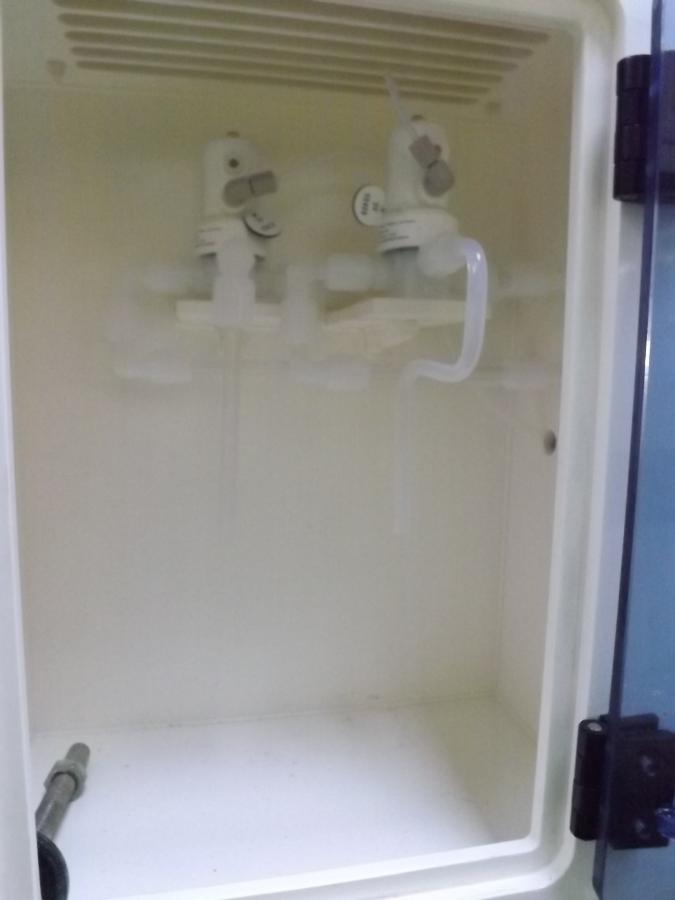

Valves, sampling box, flow regulator with pressure sensor, flushing by means of spray gun, compressed air unit, control cabinet with control panel (touch screen) and interface.
Pumps shown (2x Almatec Futur 50T air-operated diaphragm pumps / 1x Almatec A10TTT) are available separately)

Producer:	Kinetics
Year of manufacture:	2010
Pieces:	1

technical data
Connections	- (Inlet and outlet connections for chemicals, exhaust air and supply air filters on the top)
Description	Almatec Futur 50T (optional) (2 x compressed air diaphragm pump)
Delivery rate	3 m³/h (max)
Pressure	6 bar (max.)
Description	Almatec A10TTT (optional) (compressed air diaphragm pump)
Delivery rate	1.4 m³/h (max.)
Pressure	7 bar (max.)
Further information	(doors made of PVC)
Dimensions	(Length 2100 / width 1050 / height 2100mm total with assembly without stand)
Weight	500 kg (approx.)
Further information	- (Cabinet emptying canceled (lower edge of cabinet))

Beinhaltet:
1 Stk. gebrauchte Druckluftmembranpumpe mit Pulsationsdämpfer aus PTFE (29851)
Beschreibung: Eine oszillierende Verdrängerpumpe. Sie arbeitet nach dem Funktionsprinzip der Doppel-Membranpumpen. Der Einsatz einer Almatec Druckluft-Membranpumpe bezieht sich auf die Förderung von flüssigen Medien.; Typ: FUTUR T 50; Hersteller: ALMATEC; Baujahr: 2009; Dokumentation: ja; Besichtigung: ja; Lagerort: Lager Warburg I; Status: gebraucht / used / second hand; Fördermenge: 1.4 m³/h (circa); Druck: 6 bar (Max. zulässiger Antriebsdruck); Anschlüsse: 1 `` (Anschlußnennweite); Anschlüsse: R 1/4 (Luftanschluß); Material: PTFE ; Saughöhe: 3.5 (trocken); Saughöhe: 9 (gefüllt); Gewicht: 8.8 kg; Länge: 246 mm; Breite: 200 mm; Höhe: 220 mm; Zubehör: Pulsationsdämpfer D 50 T ; Temperatur: bei max 6 bar 100°C ;
