used chemistry supply system, dosing cabinet
details to article: 29477

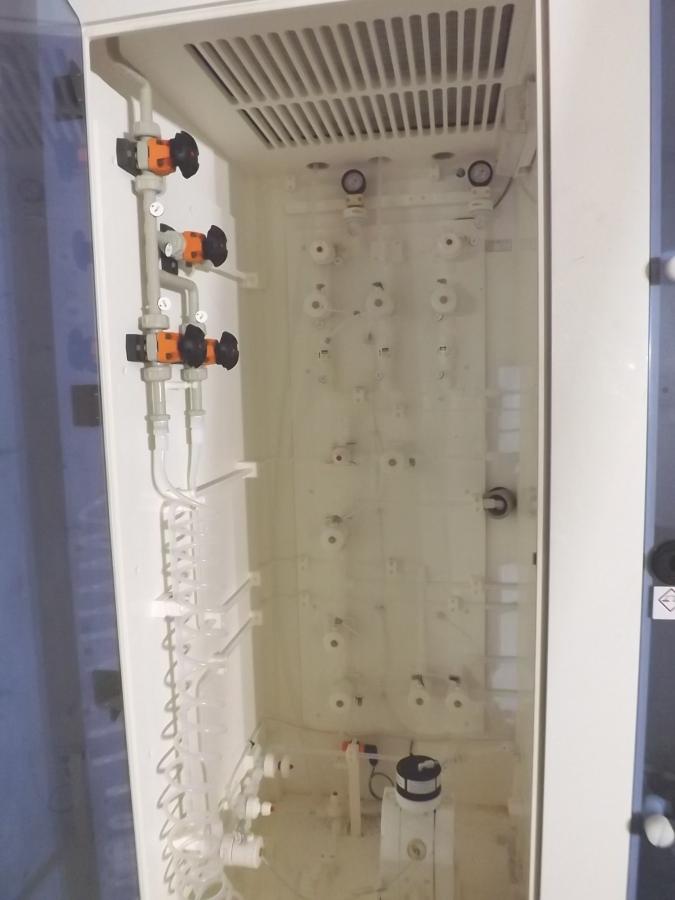

description: Dosing station / pumping station for dosing dangerous liquid chemicals. The cabinet is completely closed with cabinet exhaust air, supply air filter, compressed air unit and compressed air diaphragm pumps. With the dosing station, the chemical was pumped from the fixed tank or IBC into the distribution network.
The system is of very high quality and can be used for many chemicals.
1x compressed air diaphragm pumps Almatec A15 TTT / 1x Almatec A15 TTZ / 1x Almatec A10TTT, valves, sampling box, flow regulator with pressure sensor, flushing with a spray gun, compressed air unit, switch cabinet with control panel (touch screen) and interface.
| Producer: | Kinetics |
| Typ: | Almatec A15 TTT / 1x Almatec A15 TTZ / 1x Almatec A10TTZ |
| Year of manufacture: | 2010 |
| Pieces: | 1 |
technical data |
| Connections | - (Inlet and outlet connections for chemicals, exhaust air and supply air filters on the top) | | Description | Almatec A15 TTT / Almatec A15 TTZ (compressed air diaphragm pump) | | Delivery rate | 3.2 m³/h (max.) | | Pressure | 7 bar (max.) | | Description | Almatec A10 TTZ (compressed air diaphragm pump) | | Delivery rate | 1.4 m³/h (max.) | | Pressure | 7 bar (max.) | | Further information | (doors made of PVC) | | Dimensions | (Length 2100 / width 1050 / height 2100mm total with assembly without stand) | | Weight | 500 kg (approx.) |
|
|
