used chemical supply system, cabinet dosage station
details to article: 29475
description: Dosing station / pumping station for dosing dangerous liquid chemicals. The cabinet is completely closed with cabinet exhaust air, supply air filter, compressed air unit and compressed air diaphragm pumps. With the dosing station, the chemical was pumped from the fixed tank or IBC into the distribution network.
The system is of very high quality and can be used for many chemicals.

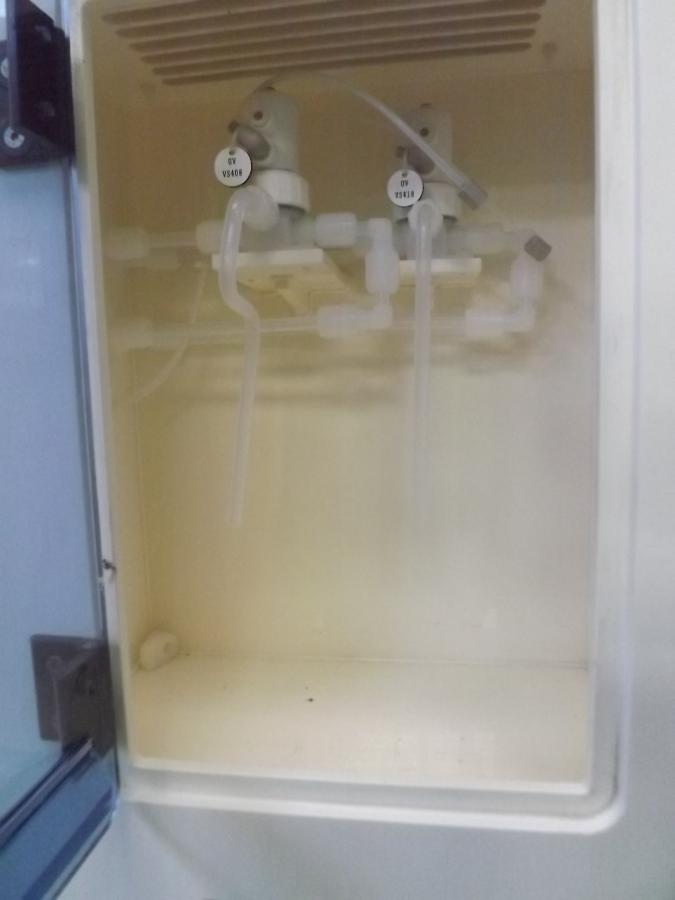

2x compressed air diaphragm pumps Almatec Futur 50T / 1x Almatec A10TTT, valve and filter units, sampling box, flow regulator with pressure sensor, flushing using a spray gun, compressed air unit, control cabinet with control panel (touch screen) and interface.
| Producer: | Kinetics |
| Typ: | 2 x Almatec Futur 50T/ 1 x Almatec A10TTT |
| Year of manufacture: | 2010 |
| Pieces: | 1 |
technical data |
| Connections | - (Inlet and outlet connections for chemicals, exhaust air and supply air filters on the top) | | Description | Almatec Futur 50T (2 xcompressed air diaphragm pump) | | Delivery rate | 3 m³/h (max.) | | Pressure | 6 bar (max.) | | Description | Almatec A10TTT (compressed air diaphragm pump) | | Delivery rate | 1.4 m³/h (max.) | | Pressure | 7 bar (max.) | | Further information | (doors made of PVC) | | Dimensions | (Length 2000 / width 2000 / height 34000mm total with assembly without stand) | | Weight | 600 kg (approx.) |
|
|
