technical data |
| Description | - (UV reactor Aqua Adventage Plus 5 with sensor monitoring) |
| Power | 1.1 m³/h (Max. flow) |
| Power | 45 W (UV low pressure lamps) |
| - | 920 mm (Immersion tube made of quartz) |
| Material | Edelstahl (stainless steel reactor) |

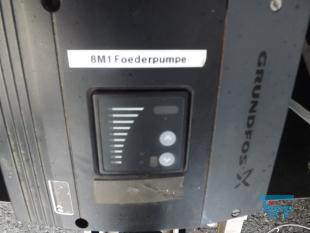

| Description | - (Pump station / Grundfos CME3-5 pump) |
| Delivery rate | 3.1 m³/h () |
| Lifting height | 45.9 m () |
| Pressure | 10 bar () |
| Temperature | 120 °C (Max. Fluid temperature) |
| Material | Edelstahl (1.4301 of the main components) |
| Power | 1.1 kW |
| Accessories | - (Pressure expansion vessel Aquapresso AD8.10) |

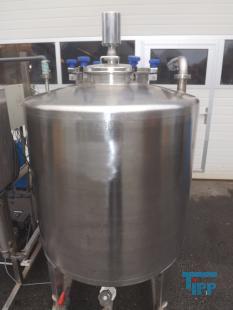

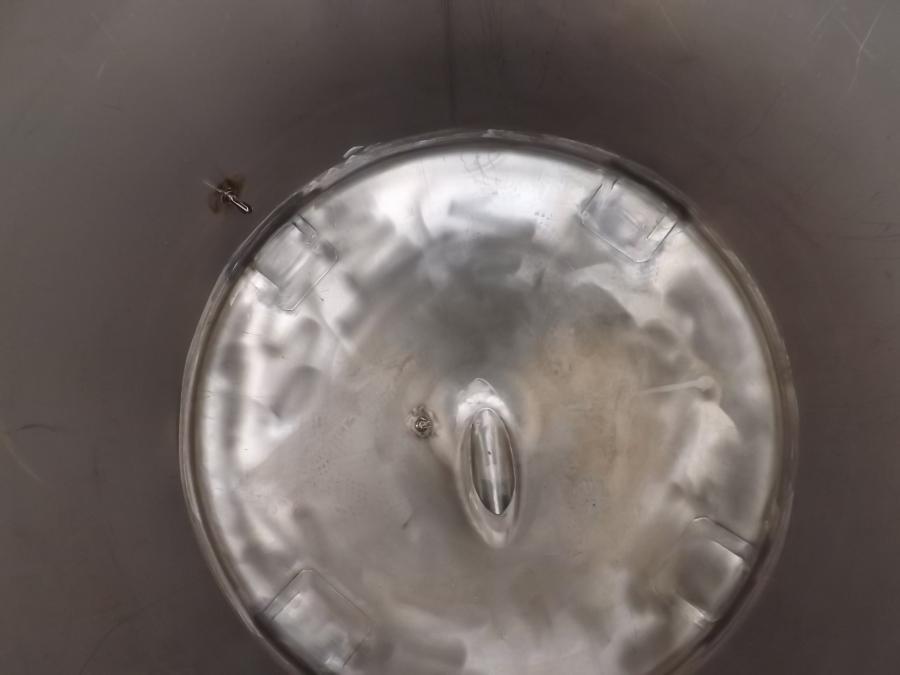

| Description | - (Stainless steel round container / storage tank) |
| Volume | 0.85 m³ |
| Connections | - (Milk tube fitting / PVC connection) |
| Dimensions | - (stainless steel containers) |
| Height | 1200 mm (Inside) |
| Diameter | 1000 mm (Inside) |
| Diameter | 400 mm (manhole cover) |
| Further information | - (2x level measurement / ventilation filter for deionized water, food or chemicals) |
| Dimensions | - () |
| Length | 1550 mm |
| Width | 1050 mm |
| Height | 1900 mm |
| Weight | 300 kg |
