used backflow preventer for water systems
details to article: 29197

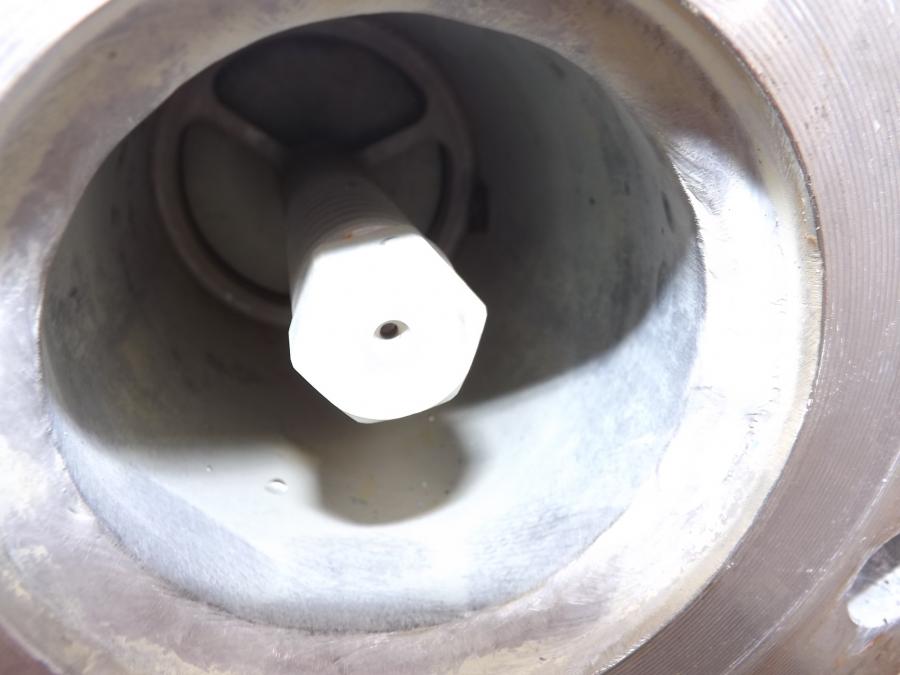

description: System separator type BA298-80
To protect water systems against backflow, back suction and back pressure of liquids. The system separator according to the three-chamber principle consists of two non-return valves, a drain valve and three ball valves for connection of a differential pressure manometer.
Producer: | Honeywell |
Typ: | BA298-80 |
Pieces: | 1 |
technical data |
Volume flow rate | 54 / 35 m³/h (Nominal flow at 1bar / discharge rate in case of failure) | Pressure | 10 / 1,5 bar (Max. Form / min. operating pressure) | Temperature | 65 °C (total) | Material | Edelstahl | Connections | - (Flange DN80) | Length | 350 mm | Dimensions | 559 (installation length) |
|
|
