used double water softener unit with salt regeneration
details to article: 29045
description: Double softening system consisting of:
- 2 GRP pressure vessels (Pentair)

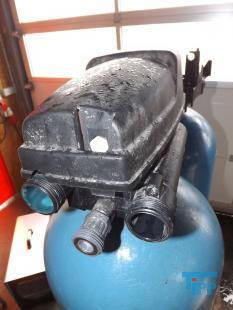

- 2 control heads (1 control head must be renewed)
- 1 sole tank

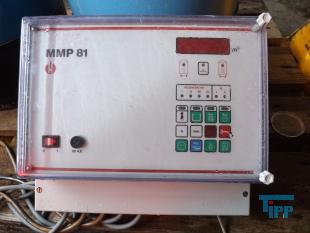

- Control unit MMP 81 (Gebrüder Heyl)
- Piping with pneumatic diaphragm valves
The plant is dismantled and stored in Warburg.
Typ: | control MMP 81 (Gebrüder Heyl) |
Year of manufacture: | 2002 |
Pieces: | 1 |
technical data |
Description | (Microprocessor control MMP 81 with connections) | - | (Control from 1-filter to 3-filter water softening systems) | - | (Remote control valves) | - | (additional program) | - | (sole tank) | Description | (GRP pressure vessel (per container)) | Volume | 106 l | Pressure | 10 bar (Max. operating pressure) | Temperature | 1 / 50 °C (min. / max.) | Diameter | 330 mm | Height | 1400 / 1600 mm (tank / tank with control head) | Description | (sole tank) | Volume | 150 l | Diameter | 520 mm | Height | 750 mm | Material | PE | Further information | (The system can also be operated with a softening) |
|
|
