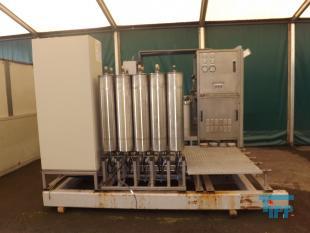

used high-pressure reverse osmosis system with flat membranes, leachate concentrate

details to article: 28335

description: Former use for the further concentration of concentrates of an upstream reverse osmosis stage in the leachate of a green waste landfill.

Producer:	ROCHEM
Typ:	9532 DT
Year of manufacture:	1995
Pieces:	1

technical data
-	10 X DT Module
Filter surface	76.5 m² (membrane)
Pressure	120 bar (operating pressure)
Temperature	5-35 °C
Material	Edelstahl (stainless steel - rack and piping (partial))
Voltage	400 V
Steering	AEG 250
Weight	2800 kg
Length	3400 mm (Frame has been shortened)
Width	2200 mm
Height	2375 mm
-	3 X Grundfos CRN 5
-	1 X Grundfos CRN 16
-	(15 X pneumatic diaphragm valves GEMÜ 600)
-	(3 X Pall Filter PR FC-20-7-71)
-	(4 X conductivity UNICON LF)
-	(1 X high pressure plunger pump CAT 3521)
